Utility tools: Mechanical full cycle ratchet

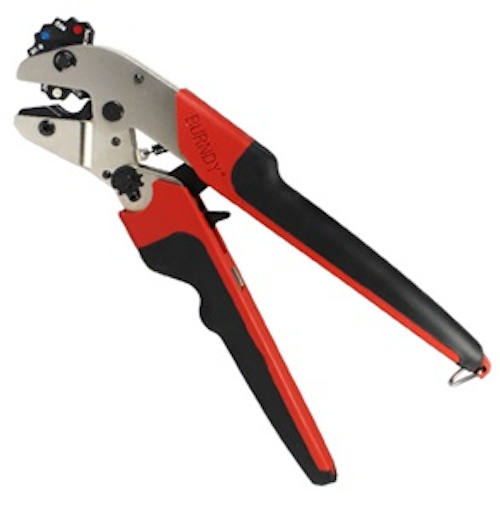

Utility equipment: BURNDY introduces new features for the Y122CMR mechanical full cycle ratchet HYTOOL.

Content Dam Up En Articles 2016 07 Utility Tools Mechanical Full Cycle Ratchet Leftcolumn Article Thumbnailimage File

Utility equipment: BURNDY® introduces new features for the Y122CMR mechanical full cycle ratchet HYTOOL™. The Y122CMR HYTOOL™ will accommodate copper compression HYDENT™ connectors for:

• #12 - #2 AWG Stranded
• #12 - #2 AWG G, H, I, K, M and DLO Flex
• #12 - #2 AWG Solid

The die index and BURNDY “bug” ( ) are embossed on the crimped connector for permanent inspectability. This tool is also available in 2 different kits (Y122CMRKIT and Y122CMRCIKIT) both come with a sturdy metal carrying case that houses the tool and select terminals.

The Y122CMR ratchet tool provides a full cycle ratchet crimp every time. The Y122CMR will not release until complete. Additionally, the comfort-grip handles reduce operator fatigue during continuous use.

Features and Benefits:
• Overmolded comfort grip handles
• Easy groove identification with color coded dies
• UL Listed/CSA Certified connections when used with recommended BURNDY terminals/splices
• Die index embossment for all 6 wire ranges
• Emergency release mechanism in case of misalignment or mistaken die choice
• D-Ring Lanyard Holder

For more information about BURNDY or other products, click here to go to Utility Products’ Buyers Guide.
