Power management: 12-port industrial gigabit managed Ethernet switches

Utility equipment: Antaira Technologies, a developer and supplier of industrial device networking and communication product solutions for harsh environment applications, announces its expansion in the industrial networking infrastructure line with the LMX-1204G-SFP series 12-port industrial gigabit managed Ethernet switches.

Content Dam Up En Articles 2016 04 Power Management 12 Port Industrial Gigabit Managed Ethernet Switches Leftcolumn Article Thumbnailimage File

Power management: Antaira Technologies is a developer and supplier of industrial device networking and communication product solutions for harsh environment applications and announces its expansion in the industrial networking infrastructure line with the LMX-1204G-SFP series 12-port industrial gigabit managedEthernet switches.

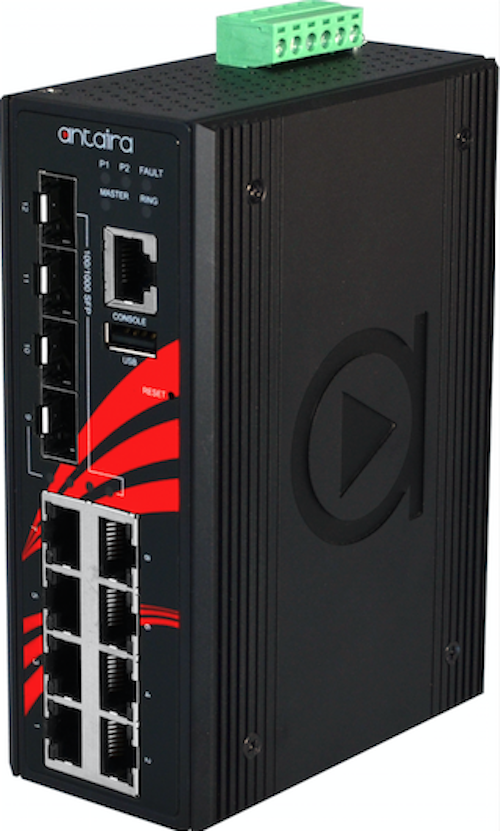

Antaira’s LMX-1204G-SFP industrial gigabit managed Ethernet switch series has been designed to fulfill applications in harsh or outdoor environments. Some applications where the LMX-1204G-SFP switch works well includes: power/utility, solar grids, windmills, mining infrastructures, factory/process control automation, ITS - roadway traffic control/monitoring, building facility outdoor infrastructures or security surveillance and access control systems.

Antaira Technologies’ LMX-1204G-SFP series is a cost effective 12-port industrial gigabit managed Ethernet switch that supports a12~48VDC power input range. Each unit is designed with eight 10/100/1000Tx Fast Ethernet RJ45 ports and four 100/1000 dual rate SFP slots for fiber. Four fiber ports allows for the implementation of a fiber optic ring as well as a separate fiber home run. With a 24 Gigabit backplane speed, the LMX-1204G-SFP supports Jumbo Frames and wide bandwidth for large Ethernet data packet transmissions. These switches are also made with high density port counts for edge-level connectivity solutions. The LMX-1204G-SFP product series provides high EFT, surge (2,000VDC) and ESD (6,000VDC) protection. These units are built to have a dual power input design with reverse polarity protection, and there is also a built-in relay warning function to alert maintainers when any ports break or power failures occur. This makes it ideal for applications in a harsh environment requiring high reliability and distance extension capability.

This product series is pre-loaded with “Layer 2” network management software that supports an ease of use Web Console or Telnet through the serial console by CLI configuration. All Antaira managed switches provide the ring network redundancy function with STP/RSTP/MSTP and the ITU-T G.8032 (ERPS – Ethernet Ring Protection Switch) protocol which supports a <50ms network recovery time, eliminating the compatibility issue for any existing network concerns. In addition, the built-in SNMP, VLAN, IGMP, QoS features support network planners to increase data transmission performance within the network. The external USB2.0 port allows the user to export and save all the configuration settings. Lastly, the flexible “custom label” feature allows networking planners to name each connection port. By naming each port, the networking planners can easily manage remote field devices.

The LMX-1204G-SFP series is backed by a five-year warranty and the units are IP30 rated, compact, fanless, DIN-Rail and wall mountable. Each series is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI) and extreme temperatures. There are two operating temperature version models for either standard temperature (-10 ~ 70°C) or extended temperature (-40 ~ 75°C). The models have the dimensions of 54mm (W) x 99mm (D) x 142mm (H) and a unit weight of 2.5 pounds.

About Antaira Technologies
Antaira Technologies is a global leading developer and manufacturer that provides high-quality industrial networking and communication product solutions. Since 2005, Antaira has offered a full spectrum of product lines that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs. Our product lines range from industrial Ethernet switches, industrial wireless devices, Ethernet media converters, and serial communication devices. Our vast professional experience allows us to deploy a wide array of products worldwide in mission-critical applications across various markets such as power/utility, automation, transportation, security, oil & gas, and medical.
