Power measurement: Monitor low-voltage lines and locate faults with the power supply still connected

Electrical testing: BAUR GmbH’s LV-Guard 250 is a device that provides a unique and innovative method of fault location in low-voltage networks without disconnecting the power supply to consumers.

Apr 21st, 2016

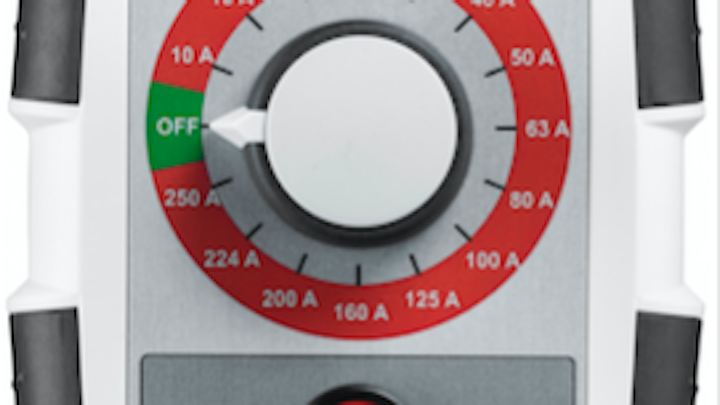

Content Dam Up En Articles 2016 04 Power Measurement Monitor Low Voltage Lines And Locate Faults With The Power Supply Still Connected Leftcolumn Article Thumbnailimage File

Low voltage tester: With the LV-Guard 250, BAUR GmbH is launching onto the world market a device that provides a unique and innovative method of fault location in low-voltage networks without disconnecting the power supply to consumers. This is achieved by inserting the compact device into the fuse holder of a low-voltage distributor in place of the conventional NH fuse. In the event of a fault, the LV-Guard briefly interrupts the power supply and then switches itself back on after a predetermined time. During tripping, the LV-Guard records a series of fault patterns using arc reflection (TDR), as well as current and voltage traces, and at the same time calculates the fault distance by means of an impedance measurement. In addition, when an event occurs the device sends an SMS to a selectable address and automatically uploads the measured data to a secure server.

Because the operating principle of this device – which is not replicated anywhere in the world – means that consumers remain connected during fault location, downtime is significantly reduced. Different set configurations can be selected. In all versions, operation and readout are performed using a standard internet browser in a clear operator interface or alternatively by convenient remote control. For the internet connection via mobile radio, the device comes equipped with a GSM/GPRS modem. A GPS module allows the position to be displayed on a map. The LV-Guard is based upon a development by MS Technik in Kiel (Germany) and has already proven itself in German and Dutch power networks. From the end of April the device will be available from BAUR around the world.

The LV-Guard is the first product from the Kiel company MS Technik GmbH & Co KG to be included in BAUR’s sales portfolio. The two specialists in cable measurement and testing technology have recently concluded a cooperation agreement that will allow further products developed by MS Technik for the low-voltage market to be sold via the global BAUR sales network.
