Utility equipment: 40 and 60 Watt DC-DC Converters with ultra-wide 4:1 input

Utility supplies: Power Sources Unlimited Inc. announces the addition of the highly efficient 40 Watt ECLB40W and 60 Watt ECLB60W Series DC-DC converters with ultra-wide 4:1 input range to our Cincon portfolio.

May 4th, 2016
Content Dam Up En Articles 2016 05 Utility Equipment 40 And 60 Watt Dc Dc Converters With Ultra Wide 4 1 Input Leftcolumn Article Thumbnailimage File

Utility equipment: Power Sources Unlimited Inc. announces the addition of the highly efficient 40 Watt ECLB40W and 60 Watt ECLB60W Series DC-DC converters with ultra-wide 4:1 input range to our Cincon portfolio. The ECLB40W and ECLB60W Series are ideally suited for distributed power architectures, telecommunications, battery operated equipment and industrial applications.

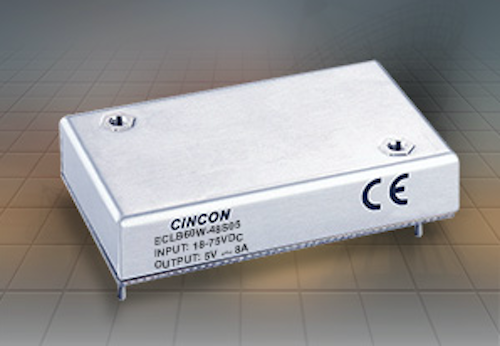

Housed in a rugged, six-sided shield metal case and measuring 2.05 x 1.20 x 0.40 inches (52 x 30.5 x 10.2mm) all units are compliant with the industry standard 2" x 1" footprint. Units offer single output voltages of 3.3, 5, 12, 15VDC and dual outputs voltages of ±12, ±15VDC. Ultra-wide 4:1 input voltage range of 9-36VDC and 18-75VDC. Standard features include high efficiency up to 92 percent, regulated outputs, remote on/off, 1500VDC I/O isolation, over temperature protection, over voltage/current protection and continuous short circuit protection. All models are RoHS compliant, carry CE mark and have IEC/EN/UL 60950-1 safety approvals. Optional heat sink, thermal pad and mounting hardware are available.

For more information about Power Sources Unlimited or other products, click here to go to Utility Products’ Buyers Guide.
