Utility equipment: Remote racking system from CBS ArcSafe

Circuit breakers: CBS ArcSafe RRS-3 DHP/DVP (S) single-application remote racking system (RRS-3) operates the Westinghouse Type DHP/DVP (S) circuit breaker without having to make modifications to existing electrical equipment.

Content Dam Up En Articles 2016 02 Utility Equipment Remote Racking System From Cbs Arcsafe Leftcolumn Article Thumbnailimage File

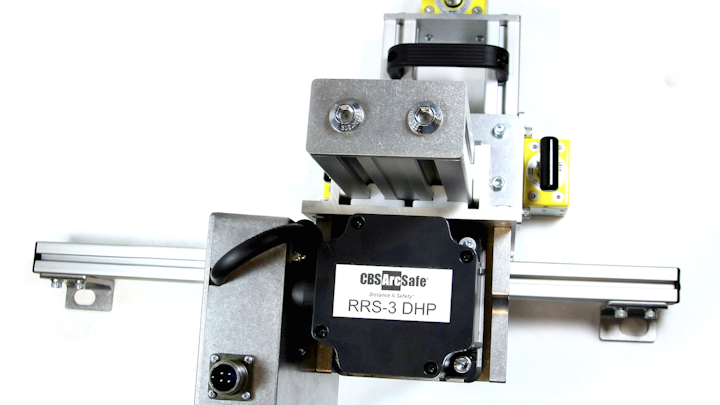

Utility equipment: CBS ArcSafe® RRS-3 DHP/DVP (S) single-application remote racking system (RRS-3) is designed to operate the Westinghouse Type DHP/DVP (S) circuit breakerwithout having to make any modifications to existing electrical equipment thanks to CBS ArcSafe’s magnetic latching system.

The lightweight, portable RRS-3 DHP/DVP (S) allows technicians to remotely install and remove a breaker while standing up to 300 feet away. The RRS-3 DHP/DVP (S) is compatible with Type DHP/DVP circuit breakers with ratings of 1200-2000 A including 50DHP75, 50DHP250, and 50DHP350.

Typical applications for the DHP/DVP breaker include electric utility systems, industrial plants, commercial buildings, municipal pumping stations, transportation systems, pipeline stations, and unit substations. Designed, manufactured, and assembled in the USA, all RRS-3 units are portable, fast, and easy to set up, offer mechanical and/ or electrical safety protection, are adjustable to fit unique electrical equipment configurations, reduce the requirements for personal protection equipment (PPE), and help customers with NFPA 70E arc-flash safety compliance.

Optional features include 25-foot extension cables, 24 V DC LED light, wireless video camera system with LCD monitor, and rugged protective case assembly.

SPECIFICATIONS
• WEIGHT: 28 lbs
• DIMENSIONS: 20.0”W x 18.0”H x 13.6”D
• POWER CONSUMPTION: 200W
• OPERATING DISTANCE: 25-300 feet
• COMPATIBILITY: Type DHP/DVP (S), includes 50DHP75, 1200 A; 50DHP250, 1200-2000 A; 50DHP350, 1200-2000 A
• CONTROL/POWER SOURCE: CBS ArcSafe® RSO-IV control console

OVERVIEW
• Remote operation from up to 300 feet
• Lightweight, portable, and adjustable
• Simple setup; no equipment modification required
• Reduces or eliminates need for arc-flash hazard suits
• Designed, manufactured, and assembled in the USA
