Safety products: 20KV/10KA surge suppressor

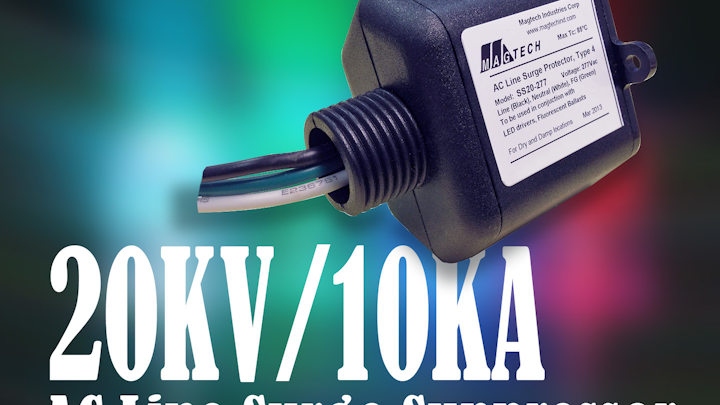

Utility supplies: Magtech SS20 Series 20KV/10KA surge suppressor for LED applications, from Power Sources Unlimited

Content Dam Up En Articles 2013 10 Safety Products 20kv 10ka Surge Suppressor Leftcolumn Article Thumbnailimage File

Wrentham, MA ― Energy management: Power Sources Unlimited announces the new SS20 Series of 20KV/10KA A/C line surge suppressors that protect your designs from catastrophic failures caused by over-voltage surges. LEDs are designed into 24/7 applications for their long life and low maintenance, but these advantages are lost when surge immunity is not applied.

SS20 Series is designed to be used in tandem with LED drivers and fluorescent ballasts to provide an added level of protection against harmful power transients in dry, damp and wet environments. Standard features include, integrated thermal protection device per UL1449 (Type 4), meets IEEE C62.42 surge requirements, wide-range operational temperature from -40°C to +85°C, LED indicator and standard 1/2″ NPT threads for quick installation.

Protection is provided from surges up to 20KV/10KA (using industry standard 8/20 uSec wave shape). The IP66 rated compact case features three wire leads for line-ground, line-neutral and neutral-ground protection. Models are available for 120, 277 and 480VAC power.

For more information about Power Sources Unlimited or other products, click here to go to Utility Products’ Buyers Guide.
