Ramrod duct rod pusher provides precise control

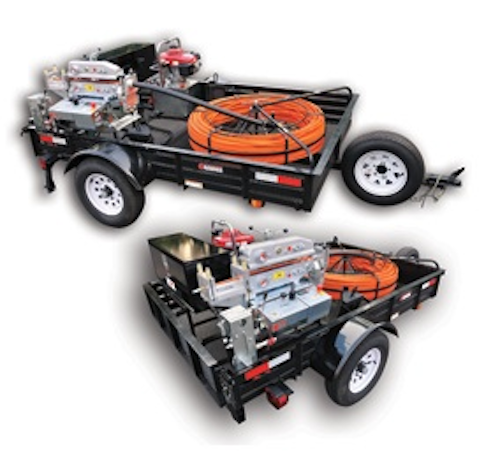

General Machine Products’ Ramrod—a trailer-mounted, powered duct rod pusher—makes placing pulling lines or fiber optic cables into conduits faster and easier.

duct rod pusher
duct rod pusher

Trevose, Pa.—General Machine Products Co. Inc. (GMP) introduces the Ramrod, a trailer-mounted, powered duct rod pusher. The Ramrod offers a mechanized method for working with GMP's 1/2 in. (12.7 mm) duct rods. It provides an alternative to expensive rodding trucks, which can cause damage to existing cable due to their immense power. The Ramrod is hydraulically powered, providing precise control, and can push and pull forces up to 300 lbs. (136.1 kg); all the while moving at speeds of up to 130 ft. (39.6 m) per minute.

The Ramrod is trailer-mounted for convenient maneuverability and transportability. It features a gasoline-driven power pack, hoses, and a locking waterproof storage box for accessories. The unit accurately measures rod-pushing footage and speed with an electronic monitoring system that works in either direction. The readout can be scaled to feet or meters.

After a conduit has been rodded, the Ramrod retrieves the rod using its bi-directional drive track. As the rod is retrieved, a wiping window located at the front end of the machine allows the rod to be wiped clean prior to storing back on the cassette. A package of rod wiper pads is provided. The complete Ramrod unit weighs 1400 lbs. (635 Kg).

GMP's 1/2 in. (12.7 mm) duct rods are available in lengths of 200–1,200 ft (61–366 m) and can also be sold separately. GMP duct rods are also available in 1/4 in. (6.35 mm) and 3/8 in. (9.40 mm) diameter. Finally, GMP also offers equivalent toneable duct rodders.

For more information on General Machine Products (GMP) or other duct rod pushers, click here to go to Utility Products' Buyers Guide.
