Four channel oscilloscopes for harsh environments

Davis Instruments introduces Fluke 190 Series II digital handheld oscilloscopes.

Fluke
Fluke

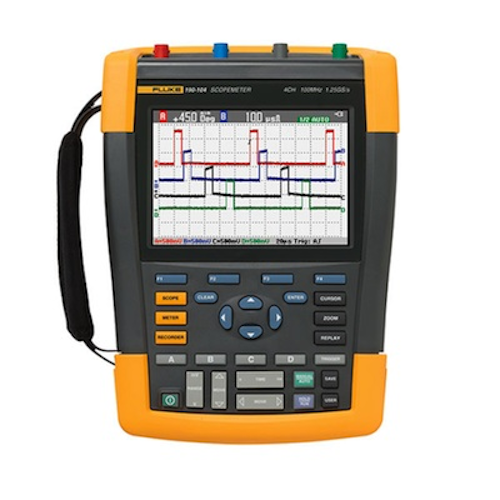

Vernon Hills, Ill., April 26, 2011—The Fluke 190 Series II digital handheld oscilloscopes are four-channel portable scopes with CAT III 1000 V/CAT IV 600 V rating. Designed for challenging environments, the instruments are rugged, IP51-rated dustproof and drip-proof, and also shockproof. Because of their resiliency, they are especially geared for the electrical equipment, process control, automation, medical imaging, avionics, and A/V and security systems industries.

With these scopes, engineers and technicians can safely and easily troubleshoot three-phase systems such as variable-speed drives, UPS systems and backup generators. They can measure input, output and feedback signals simultaneously to diagnose industrial electronics.

The oscilloscopes are compact, portable and weigh only 4.8 lbs. They contain four independent isolated inputs up to 1000V, with high-speed sampling up to 2.5 GS/s. Their memory is deep, holding 10,000 points per trace waveform capture. With a new, high-performance, swappable Li-ion battery, the scopes are cited to offer the longest battery life available―up to seven hours. Optional FlukeView ScopeMeter software documents and transfers waveforms and screens to a PC for printing or importing.

Choose from 200 MHz or 100 MHz models, with optional accessories and kits.
