Safety products: dc-dc converters from Schaefer

Utility equipment: Schaefer’s new dc-dc converter’s ultra-wide temperature range designed for compact industrial applications.

Content Dam Up En Articles 2014 08 Safety Products Dc Dc Converters From Schaefer Leftcolumn Article Thumbnailimage File

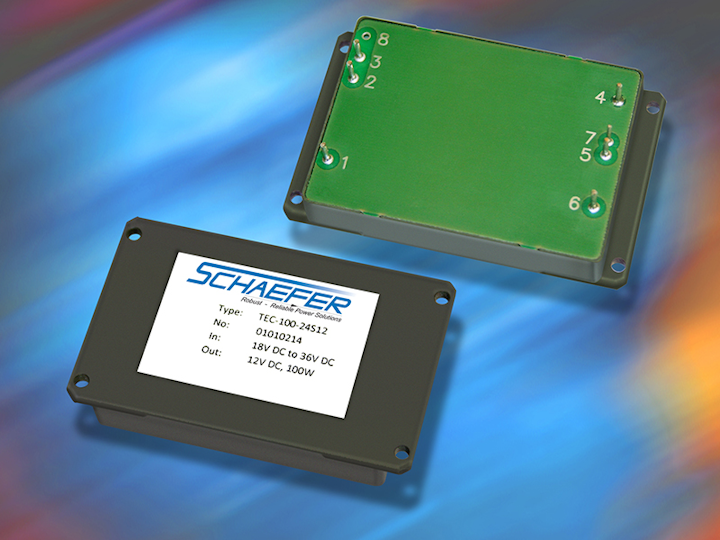

Utility supplies: Schaefer Inc. announces the TEC-100 and TEC-200 Series of isolated dc-dc converters that provide 100W and 200W of continuous power that feature high efficiency (up to 93%) and –60°С to +125°С operating temperature range. These units are especially designed for heavy industrial applications and harshest environment conditions.

The TEC Series provides both 2:1 and 4:1 wide dc input ranges of 9-18VDC, 9-36VDC, 18-36VDC, 18-75VDC, and 36-75VDC. Five single output models offer output voltages ranging from 5 to 28VDC. All modules also offer comprehensive protection circuitry including over-current, over-temperature and short-circuit protection. They can be enabled/disabled remotely and be easily connected in a parallel or series configurations. EMC filtering meets EN55022 Class A and EN 55022, Class В with an additional Schaefer filter. Worldwide safety approvals are to IEC/EN 60950 standards.

The TEC Series converters are sealed in an efficient, heat-conducting potting material and they undergo special thermal and limit tests, including temperature cycling and burn-in. With the absence of opto-couplers and electrolytic capacitors in the converter’s circuit, a greater MTBF is ensured in high-temp applications. The low-profile 0.5” converters are available in metal cases with mounting flanges.
