Utility supplies: Weather-resistant circular power connector

Utility equipment: Hirose releases IP68 power connectors for harsh environments. The IP68-rated, waterproof connector is designed specifically for outdoor use in applications such as lighting and more.

Nov 13th, 2014
Content Dam Up En Articles 2014 11 Utility Supplies Weather Resistant Circular Power Connector Leftcolumn Article Thumbnailimage File

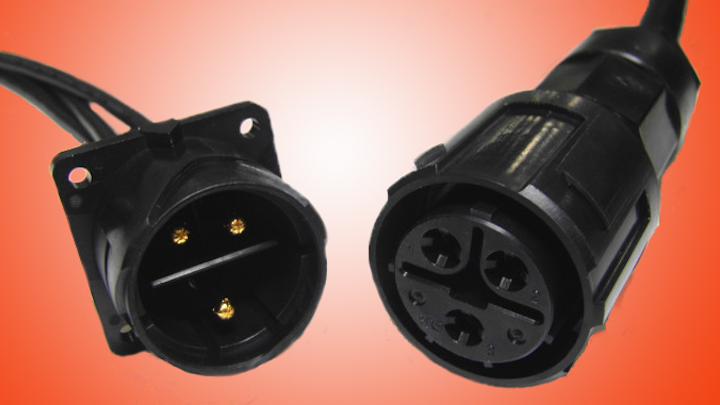

Work lights: Hirose, a leader in the development of innovative connector solutions, has strengthened its circular power connector product offering with the development of the HR41 Series weather-resistant connector. The IP68-rated, waterproof connector is designed specifically for outdoor use in applications such as lighting (LED lighting, construction site lighting, street lamps, tunnel lighting, marine/boating, and agriculture lighting), base station transceiver systems (BTS) and electronic toll collection (ETC) systems.

When in the mated condition, the unique waterproof gasket design prohibits water intrusion while submerged in up to 2m water depth for 14 days. Featuring a lightweight and corrosion-resistant plastic body, the HR41 Series connector incorporates high lightning surge protection (15 kV), salt spray resistance (no corrosion after 1500 hours of salt spray) and high withstanding voltage ratings.

The HR41 Series is designed with sequential contact mating and sacrificial contact points for hot swap capability. Optimized for field assembly, the HR41 Series has a user-friendly bayonet lock with raised tactile plug alignment indicator and a secure cable clamp design. A highly reliable crimp contact ensures a safe and secure connection, and termination can be accomplished with a commercially-available crimp tool.

Available in either a three-position flange type or a five-position bulkhead type, the HR41 Series has an operating temperature range of -40C to +85C, a contact resistance of 2m ohms maximum at 1A, and an insulation resistance of 5000M ohms maximum at 500V DC. The three position HR41 Series has a withstanding voltage rating of 4260V AC, rated voltage of 400V AC/DC and a rated current of 20A. The five position version has a withstanding voltage rating of 2200V AC, rated voltage of 600V AC / 400V DC, and a rated current of 20A.

The HR41 Series is UL certified, and pending TÜV certification.
