Utility equipment: Richardson RFPD introduces GaN amplifier for DOCSIS 3.1 CATV from ANADIGICS. The high-output GaN power doubler amplifier operates from 50 to 1218 MHz.

Content Dam Up En Articles 2014 11 Utility Tools Catv Power Doubler Amplifier Leftcolumn Article Thumbnailimage File

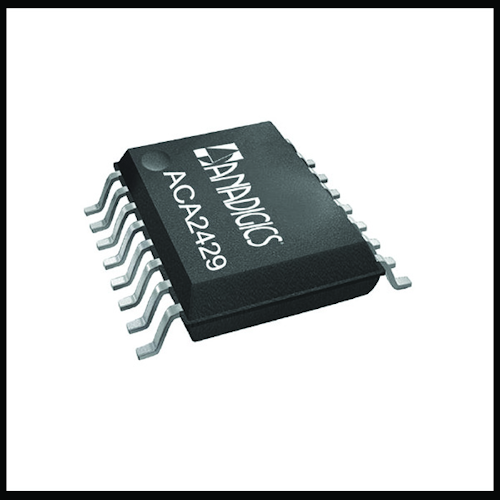

Utility supplies: Richardson RFPD Inc. announces the availability and full design support capabilities for a new 50 to 1218 MHz GaN CATV power doubler amplifier from ANADIGICS. The ACA2429 is a highly linear, high output power, integrated RF amplifier designed for CATV head ends and HFC distribution systems. The IC consists of two parallel amplifiers that are optimized for exceptionally low distortion, high output power, and high crash point, in a thermally-enhanced surface mount package. The device incorporates a GaN output stage to minimize operating (bias) current. The ACA2429 provides high gain over the 50 to 1218 MHz CATV downstream band, and is cascaded between two transmission line baluns. Frequency coverage up to 1218 MHz makes it suitable for the new DOCSIS 3.1 CATV standard.

According to ANADIGICS, additional key features of the ACA2429 include:
• +59 dBmV output power
• 25 dB gain @ 1218 MHz
• 1 dB tilt over bandwidth
• Single +24V supply
• 430 mA operating current
• -78 dBc composite triple beat (CTB), -66 dBc composite second order (CSO)
• 10 mm x 10 mm SOIC-16 package

The new device is ideally suited for advanced high power, high frequency HFC transmission systems, as an output power doubler for deep fiber node in CATV distribution, and as a CATV digital edge QAM output driver.
