Utility supplies: device networking and industrial communication products

Utility tools: Antaira Technologies introduces industrial wireless serial device servers with bridge mode.

Content Dam Up En Articles 2014 12 Utility Supplies Device Networking And Industrial Communication Products Leftcolumn Article Thumbnailimage File

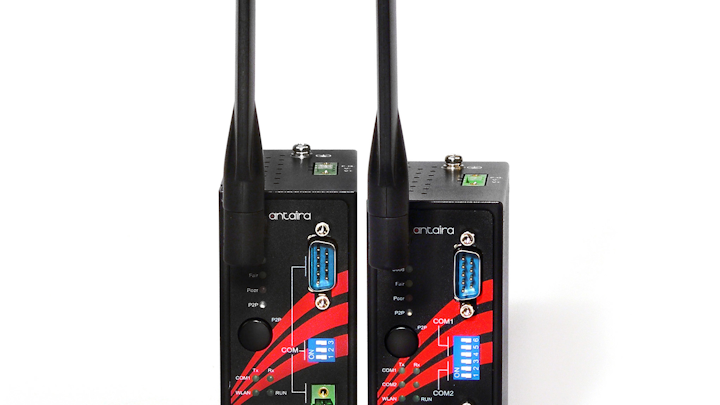

Utility equipment: Antaira Technologies, a developer and supplier of device networking and industrial communication products, introduces the STW-61xC industrial wireless serial device server series that encompass bridge mode and Wi-Fi direct technology solutions.

Antaira Technologies’ new STW-61xC series allows users to use a bridging mode to establish a simultaneous three-way communication path within a single unit (serial-to-wireless, serial-to-Ethernet, and Ethernet-to-wireless). This allows any serial and Ethernet device to link to a wireless network to form a three-way communication. The STW-61xC series can communicate on a 2.4GHz bandwidth and operate on a wide voltage input range of 9~48VDC which is IEEE 802.11b/g/n compliant with WPA, WPA2 and 802.1x .

The STW-61xC series adopted the Wi-Fi protected setup technology to provide a Wi-Fi direct EZ setup solution for point-to-point wireless networking. By only pressing the STW-600C units’ front “push button” for a few seconds, it automatically builds a “serial-auto link” within the STW-61xC units and allows both connected serial devices to establish communication.

Model options for the STW-61xC series include STW-611C and STW-612C. The STW-611C includes one port and the STW-612C includes two ports of RS232/422/485 (software selectable) serial, which can wirelessly transmit data at speeds up to 921.6Kbps, and both models have one port of 10/100Tx Ethernet. These models provide either a web console or a windows utility for device configuration which allows users to have a different support mode of operation, such as, virtual COM, TCP/UDP server/client, and a tunneling (pair connection) solution.

The STW-61xC series can be used in various market applications. For example, factory automation can use the device in a remote wireless machine control within CNC manufacturing. The transportation industry can use the device to extend the wireless network connectivity with any serial and Ethernet equipment in a light rail station. In the security market, the device can be used to remotely monitor a wireless network for access control and video surveillance systems. The oil/gas/mining and water wastewater markets can use this unit for industrial control in process control automation. Lastly, the medical field can use this unit to wirelessly apply real-time data transmission.

The STW-61xC series also features a compact IP50 rugged aluminum casing and DIN-Rail mounting design that is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference and temperature extremes.

For more information about Antaira Technologies or other products, click here to go to Utility Products’ Buyers Guide.
