Utility supplies: Conformable cables for distributed antenna system

Utility equipment: RF Connectors’ low PIM .141 conformable cable assemblies are alternative to semi-rigid for distributed antenna system (DAS) installations.

Content Dam Up En Articles 2014 12 Utility Supplies Conformable Cables For Distributed Antenna System Leftcolumn Article Thumbnailimage File

Energy management: Standard semi-rigid .141 cable assemblies with a solid jacket metal shield offer excellent electrical and low PIM performance. For installations with cable bends, special equipment is required to form the cable, requiring advance planning and longer lead times.

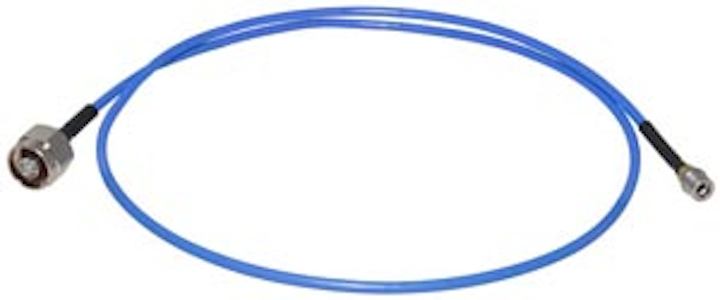

RF Industries conformable semi-rigid cable assemblies are manufactured with tin filled, braided outer conductor that exhibits similar electrical properties to solid semi-rigid, but can be hand formed in the field with no degradation in electrical or PIM performance. The cable has a diameter of .141 inches with a protective insulated blue jacket. The assemblies are available terminated with N male and/or QMA male connectors. Assemblies are available in standard lengths of 3, 6 and 9 feet or custom lengths. They have a VSWR of under 1.2:1 up to 2,400 MHz with an operating frequency up to 3,000 MHz. The PIM rating is less than -155 dBc for the N male connectors and -145 dBc for the QMA male connectors using 2 tones at 20 watts.

All low PIM cable assemblies manufactured by RF Industries are tested to certify they meet or exceed the advertised specifications. The PIM value is printed on the cable assembly along with a serial number. For verification, a complete PIM performance chart is available by entering the cable serial number in PIM Tracker on the RF Industries website.

For plenum rated requirements, RF Industries manufactures assemblies using Times Microwave TFT-402-LF cable.

Available from RF Connectors distributors throughout the US, Canada and Mexico. RF Connectors is a division of RF Industries (NASDAQ RFIL), a leading supplier of connectivity solutions provided through its operating divisions: RF Connectors, RF Cable Assembly, Aviel Electronics, OddCables.com and Cables Unlimited.
