Temperature data logger
Utility equipment: Simplify wireless Smart HART temperature readings with Moore Industries’ THZ WirelessHART solution.

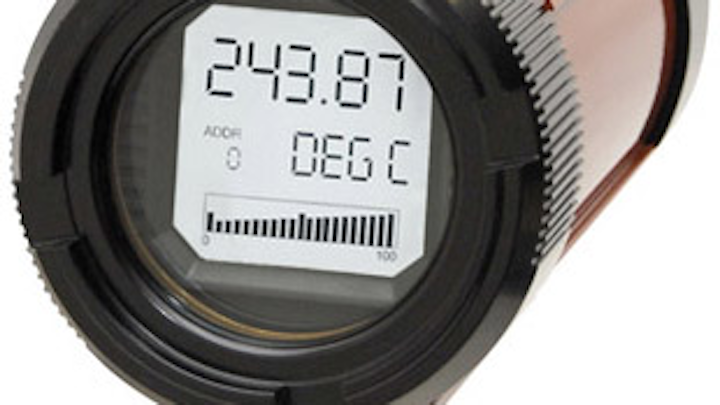

Utility supplies: Moore Industries-International Inc. has a new way to get accurate temperature readings in remote locations while accessing valuable Smart HART® data. The THZ WirelessHART Temperature solution combines our THZ Smart HART Temperature Transmitter and the BULLET WirelessHART Adapter by MACTek into one reliable and affordable self-powered package.
The new WL housing includes a battery case utilizing off-the-shelf D-type lithium batteries wired to the transmitter and the BULLET. This means that the package can be installed without the need for potentially expensive signal wiring or additional power. This saves on long-term maintenance and repair costs associated with wiring along with eliminating the need to stock or purchase special batteries. It also reduces replacement battery costs by cycling the THZ¹s power and taking periodic readings to optimize the balance between power needs and wireless communication update rates. This and other features allow the lithium batteries to last up to four to five years.
The THZ WirelessHART assembly allows the THZ to transmit critical temperature and HART diagnostic information to a WirelessHART gateway in situations where power is not readily available. Examples of this include a remote pumping station or monitoring locations where access to power is limited. By utilizing the THZ WirelessHART solution, engineers can take full advantage of critical temperature readings and HART diagnostics without needing solar panels or other power sources.
Along with providing significant cost savings over similar packages offered by competitors, the THZ WirelessHART solution is also extremely dependable and easy to use. It features:
• Industry-leading 20-bit input resolution and long-term stability specifications, with up to five years of service between scheduled calibrations.
• The BULLET prevents the loss of critical temperature readings by monitoring the battery voltage and setting a HART alarm bit when it nears critical levels.
• The ability to either be factory configured or field configured using standard HART handheld communicators or HART-capable host systems. The BULLET also supports programming via a DTM with an FDT-compliant host.
• A weatherproof IP66 NEMA Type 4X dual compartment housing that is available for installation in rugged field areas.
• Easy access to HART handheld connections and battery voltage monitoring terminals and a large, easy-to-read display.
The WL enclosure is a modified version of the DH housing and is available as an option when purchasing the THZ Smart HART Temperature Transmitter.
