Cable test equipment: VDV II cable verifiers troubleshoot, verify voice/data/video cables

Utility testing: More than a wiremapper, IDEAL Industries’ VDV II cable verifiers reduce time and cost of verifying low voltage LAN and coaxial cables in new builds or MAC work. Accurately detects complex wiring faults instantaneously while an integrated TDR simplifies troubleshooting and improves on-site productivity.

Content Dam Up En Articles 2014 07 Cable Test Equipment Vdv Ii Cable Verifiers Troubleshoot Verify Voice Data Video Cables Leftcolumn Article Thumbnailimage File

Cable testing equipment: IDEAL Industries Inc., a provider of quality tools, connectors and testing prodjucts for electricians and data communications contractors, has launched its new VDV II Series of affordable, easy to use cable verifiers. Available in three versions to serve a variety of applications, VDV II verifiers check the integrity and detect all wiring faults in low-voltage copper cables commonly deployed in residential, commercial or industrial voice, data or video installations, including telephone wiring, LAN (CAT 5 to CAT 7, UTP and STP) and coaxial cabling.

"Installers and technicians spend too much time troubleshooting with testers that are inaccurate or do not provide enough detail about the installation to really diagnose and solve the problem," explained Jeff Meader, Business Unit Manager for IDEAL. "With our new VDV II Series, problems can quickly and easily be located, thereby saving time and money. They have a range of features to match all levels of network and coax installation or maintenance whether its a new build or network moves, adds and changes."

Ergonomically designed to fit comfortably in the palm of the hand, VDV II Series verifiers identify wiring errors instantly, capturing comprehensive details on faults such as opens, shorts, reverses, miswires and split pairs that can slow a network or take it down completely. The integrated RJ11/RJ12 (voice), RJ45 (data) and F-Type coaxial (video) connectors help the user achieve faster testing of most types of low-voltage cables by eliminating the need for separate testers or adapters. Intelligent technology lets the unit know if it has been plugged into an outlet where potentially damaging voltages are present.

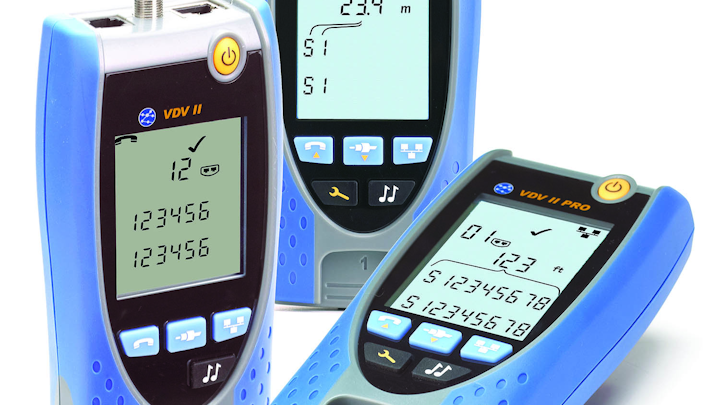

All three VDV II Series models -- the VDV II (basic), VDV II Plus (advanced), and VDV II Pro (professional-grade) -- provide wiremapping capability. In addition, the VDV II Plus offers a larger 2.9-inch display with backlighting, hub blink, cable length measurement and distance-to-open. The flagship VDV II Pro offers all this, plus uses a TDR to quickly determine where cable damage is located by identifying the distance to opens and shorts. The VDV Pro will also display mission-critical network connectivity information without the need for a PC. By detecting the presence of voltage and checking polarity, the VDV II Pro quickly determines which type of media service is running over the cable, such as ISDN, PBX and PoE (Power over Ethernet) resulting in faster fault diagnosis. Troubleshooting active Ethernet networks is also made easier with in-built network detection that displays network rate and duplex information.
For more information or to request a demonstration, please visit the VDV II Series website at www.vdvii.com

Founded by J. Walter Becker in 1916, IDEAL Industries Inc. is one of the world's leading manufacturers of professional quality tools and supplies serving installation professionals in the construction, maintenance, data communications and original equipment manufacturing industries. Over 6,000 items make up the IDEAL family of products including some whose names have become synonymous with their function. Wire-Nut® Wire Connectors, Yellow 77® Wire Pulling Lubricant and T®-Stripper Wire Strippers have found their way into the tool bags of professionals and solidified the IDEAL reputation as an engineer of innovative and trustworthy products.

In addition to serving the needs of electrical and data communications professionals, IDEAL also meets the high power interconnect market needs through Anderson Power Products, the environmental monitoring and measurement market through Casella Measurement, and the telecommunication industry through Trend Communications.

For more information about IDEAL Industries or other products, click here to go to Utility Products’ Buyers Guide.
