Utility equipment: In-line indent crimper from Greenlee

Utility tools: Greenlee introduces its EK6IDL six-ton dieless lightweight crimping tool, designed with a dual stage telescopic cylinder to identify the correct pressure needed to crimp a broad range of wire classes.

Jul 7th, 2014
Content Dam Up En Articles 2014 07 Utility Equipment In Line Indent Crimper From Greenlee Leftcolumn Article Thumbnailimage File

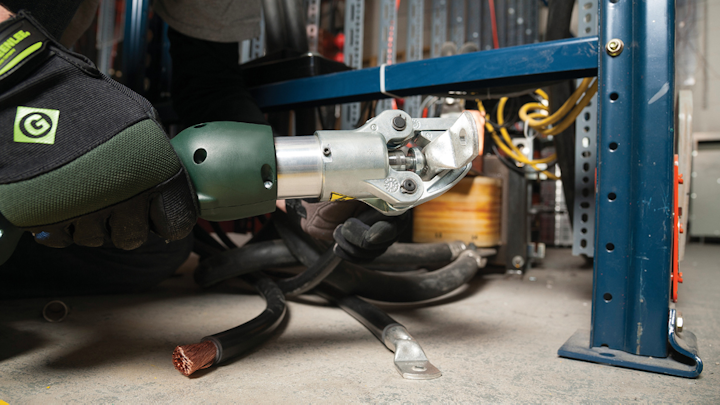

Utility supplies: Greenlee continues to drive efficiency with the introduction of its new EK6IDL six-ton dieless lightweight crimping tool, designed with a dual stage telescopic cylinder to identify the correct pressure needed to crimp a broad range of wire classes.

The EK6IDL has two pistons, an interior small piston that transmits a force of 30kN. This enables the tool to fix cable lugs and connectors to the correct position prior to crimping operations and crimp smaller cross sections up to 1/0 AWG. The exterior piston transmits a force of 60kN and crimps all larger cross sections.

The EK6IDL tool is managed by Greenlee’s Intelli-Crimp technology, which measures pressure and amperage 32 times a second. This provides variable 30kN / 60kN cylinder safeguards that makes sure optimal crimp performance is always being achieved regardless of the cross section. The tool can be used in an extremely large crimp range, for copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM.

The EK6IDL is Gator Eye compatible, which allows users to get the most of their tools with the ability to track work history, generate reports, performance logs, and indicates when the tools needs to be recalibrated.

The EK6IDL comes with a flip top style rotating head, has single trigger operation controls for all tool functions, and automatic retraction. There are accountability features with the tool that help eliminate the risk of selecting the wrong die, and another feature provides a clear marking for crimped connectors which enables subsequent control.

Application areas include industrial and commercial electricians, switchgear, control-gear, as well as transformer manufacturers where standard and fine stranded conductors are commonly used, often in restricted areas.

For more information about Greenlee or other products, click here to go to Utility Products’ Buyers Guide.
