Safety lighting: Twenty-foot telescoping light mast with four 150-watt LED light fixtures

Work light: Larson Electronics has announced the release of a 20-foot telescoping light mast with 360° rotating capabilities that is equipped with four 150-watt LED light fixtures. The LM-18-4X150RT-RB is a fold over light mast that produces 48,000 lumens of light capable of illuminating 2.5 acres of workspace.

Apr 15th, 2014
Content Dam Up En Articles 2014 04 Safety Lighting Twenty Foot Telescoping Light Mast With Four 150 Watt Led Light Fixtures Leftcolumn Article Thumbnailimage File

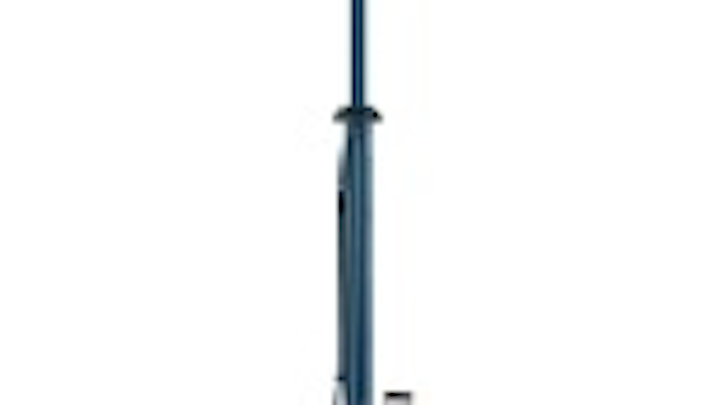

Utility supplies: The LM-18-4X150RT-RB telescoping light mast from Larson Electronics features a rotating boom that allows for 360° of rotation, a removable masthead affixed with four 150-watt LED light fixtures, and an easy fold over assembly. This light boom can be extended to a height of 20 feet for effective coverage and collapsed to 12 feet. The mast is elevated from its folding position with a 1,000-pound hand winch that is fitted with 3/16 inch cable. A second 1,000-pound winch provides the 12 foot to 20 foot elevation of the mast. The 360° rotation is provided by a single T-Handle. By loosening the T-Handle, operators can rotate the mast with ease in either direction and lock it into place once the desired position is found.

This light mast includes four of our wet area suitable LED fixtures that produce a combined total of approximately 48,000 lumens at only 600 watts. Each fixture produces 12,000 lumens of high intensity light while drawing only 150 watts at 1.25 amps from a 120 volt electrical system. The lights are wired to a junction box at the base of the tower, and 10 foot of SOOW cable terminated in an industrial grade 5-15 plug. A 36 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four light fixtures. These light masts are typically mounted to trailers or other stable surfaces by a 15 inch by 13 inch, 1/4 inch thick mounting baseplate which has been predrilled to accept six 3/4 inch anchor bolts. When lowered to 12 feet, the mast can withstand winds up to 125 miles per hour. The light tower weighs approximately 300 pounds and can easily support and lift 150 pounds of weight.
