Temporary Conductor Support Provides Additional Conductor Clearance

Diversified Products introduces Temporary Conductor Support (TCS) for holding energized conductors above the crossarms when additional clearance is needed.

conductor support
conductor support

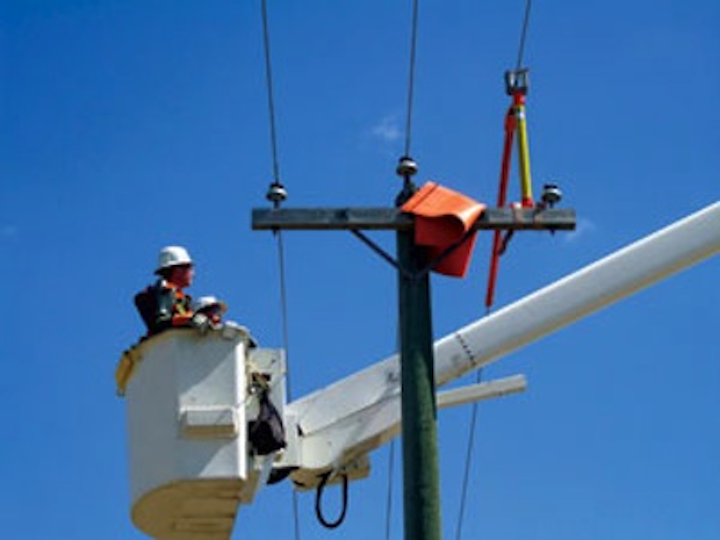

Diversified Products introduces its Temporary Conductor Support (TCS) for holding energized conductors above the crossarms when additional clearance is needed. The TCS is lightweight, yet durable, and attaches to most crossbar sizes.

Field-tested and approved by transmission and distribution maintenance professionals, Diversified’s TCS features a foam-filled fiberglass rod and aluminum wire holder. At 49.5 inches tall, the TCS consists of 32-inch, clear span insulation. Weighing only 23.5 pounds, it has a vertical load capacity of 300 pounds and a horizontal load capacity of 150 pounds.

The TCS comes with a wire holder with a spring-loaded latch for easily securing lines, and it uses non-metallic rollers to protect conductors. The unit attaches to crossarms via dual ratchet straps with quick-release ends. It fits crossbar dimensions of 6 inches by 6 inches, 5 3/4 inches by 4 3/4 inches, 4 5/8 inches by 3 5/8 inches and more.

For more information about Diversified Products or other conductor supports, click here to go to Utility Products' Buyers Guide.

Diversified Products
