FIBERLIGN In-Span Storage System Simplifies Aerial Slack Cable Storage

Preformed Line Products (PLP) develops FIBERLIGN In-Span Storage System as a new way to speed up and simplify the storage of aerial fiber optic slack cable. The cable clips into place during installation.

Nov 7th, 2012
Content Dam Up Online Articles 2012 11 Plp

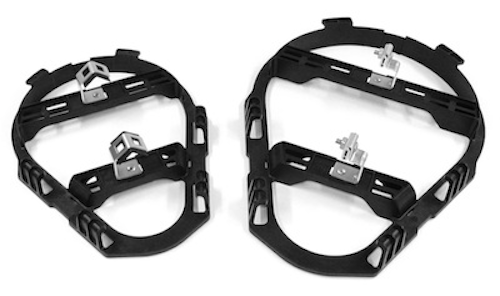

Preformed Line Products (PLP) has developed the FIBERLIGN In-Span Storage (FIS) System as a new way to speed up and simplify the storage of aerial fiber optic slack cable. One of the design elements of the FIS is the cable capture tabs, which allow the installer to clip the loop of cable into place rather then using the traditional method of securing the cable using multiple cable ties. The installer first clips the cable into the tabs and then pulls the storage bracket to the back of the loop. Once the storage bracket is in its final position, the cable is secure and the installer can work hands-free installing the few cable ties needed to complete the job. The installation process is streamlined and saves money. In addition, FIS can be hung from either an all-dielectric self-supporting (ADSS) or lashed messenger cable.

Features include:
• 12-in. diameter storage bracket accommodates cable diameters up to 0.60 in.
• 16-in. diameter storage bracket accepts cable diameters up to 0.80 in.
• Multiple cables can be stacked vertically, providing large storage capability in a small profile.
• Installers can choose from a full range of accessories, including hanger brackets, cable ties, cable guides and abrasion protectors.

For more information about Preformed Line Products (PLP) or other storage systems, click here to go to Utility Products' Buyers Guide.
