Smartformer transformer and distribution box enhance flexibility

SMA announces its Smartformer, a transformer and distribution box that is compatible with SMA’s Sunny Island inverters.

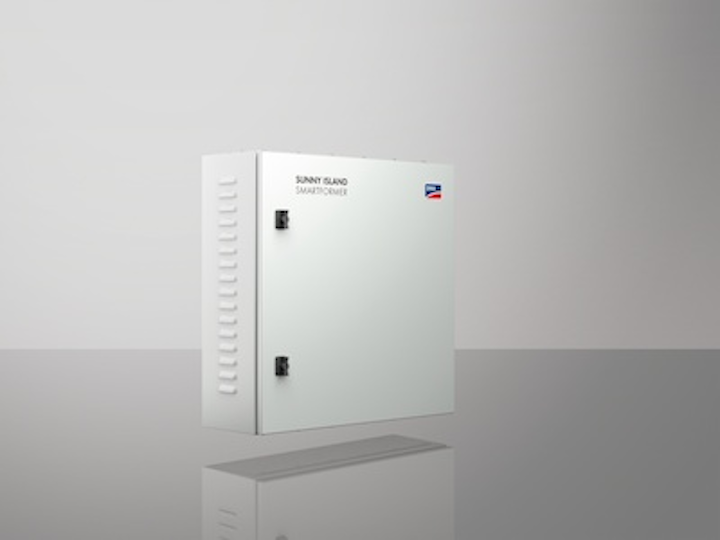

Content Dam Up Online Articles 2012 06 Sma

Rocklin, Calif. and Toronto—SMA announces the availability of its Smartformer, a transformer and distribution box that is compatible with SMA’s Sunny Island inverters. Available in the North American Market, the UL certified Smartformer facilitates easy application for off-grid or grid-tied battery backup single Sunny Island systems. With this product SMA continues its efforts to improve the performance of battery backup PV power systems.

This practical solution can be utilized for systems using Sunny Boy inverters up to 6,000 W. It employs a highly efficient toroidal 120/240 V autoformer to provide 240 V AC distribution for single Sunny Island systems. The Smartformer has step-up and step-down options for supply loads, enabling a highly efficient, dependable system that is also easy for users to maintain.

“The step-up and step-down options that the Smartformer provides for single Sunny Island systems increases design flexibility for off-grid or grid-tied battery backup systems,” said Jurgen Krehnke, president and general manager of SMA America and president of SMA Canada. “This solution is unique because it includes a bypass switch and a load shedding relay for battery discharge protection, which distinguishes the Smartformer from other autoformers by offering unmatched safety and versatility.”

The Smartformer’s bypass switch and load shedding relay add additional ease and enhance safety to stand-alone grids. The bypass switch bridges the system to allow for easy, safe maintenance and direct grid operation without disrupting power to backed-up loads. The load shedding relay offers protection against deep discharge of a system’s batteries to minimize power disruption and extend battery life.

SMA’s Smartformer features internal over-current protection, simplifying installation. The toroidal transformer offers 99 percent efficiency. It has an operating temperature range of -25 C to 60 C.

The Smartformer is paired with SMA’s US series of Sunny Island battery-based inverters, equipped with best-in-class grid and battery management functions, including monitoring. The Sunny Island acts as system manager to collect real-time data and make intelligent decisions based on battery state of charge, state of health, electrical loads and generation capacity. When used with the Smartformer, a Sunny Island system will use batteries more efficiently before activating a backup energy source.
