TEN 50 Series high-performance 50 watt dc dc converters

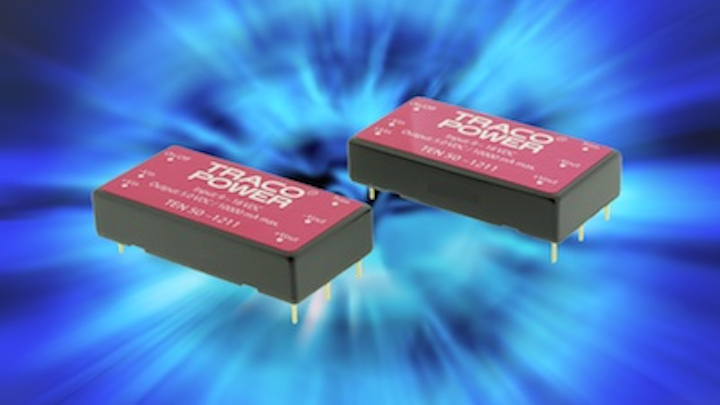

Power Sources Unlimited announces the TEN 50 Series of high performance 50 watt dc/dc converters in a 1″ x 2″ x 0.4″ industry standard package size.

Content Dam Up Online Articles 2012 06 Power Sources1

Wrentham, Mass.—Power Sources Unlimited Inc. announces the TEN 50 Series of high performance 50 watt DC/DC converters in a 1″ x 2″ x 0.4″ industry standard package size.

The TEN 50 Series models feature a very high efficiency of up to 92 percent. The low thermal dissipation and the use of highest grade components allow for an operating temperature range of –40C to +85C. Forced air cooling is not required up to 55C. With an optional heat sink, this temperature can even be increased.

Unit requires no minimum load to obtain accurate output regulation. The TEN 50 Series comes standard with remote On/Off function as well as an adjustable output voltage range of ±10 percent. Along with superb standard features, these converters are the ideal solution for space critical high performance applications.

Additional features include 2:1 input range, 1500VDC I/O isolation voltage, metal case with insulated base plate, cUL/UL 60950-1, and IEC/EN 60501-1 safety standards approvals.

For more information about Power Sources Unlimted or other converters, click here to go to Utility Products' Buyers Guide.
