150W ac-dc power supplies

Power Partners introduces 2 in. x 4 in. 150W ac/dc power supplies.

Content Dam Up Online Articles 2012 10 Power

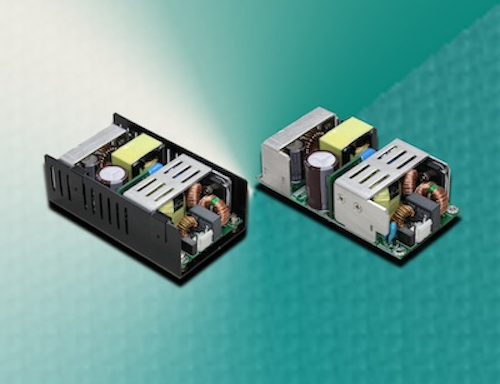

Hudson, Mass.—The Power Partners PPWA150B Series of ac/dc power supplies provide up to 150W of output power in a compact 2 in. x 4 in. footprint, achieving a power density of 18.75W/in. They are RoHS compliant, meet EN60950-1 and FCC Class B emissions limits, and are approved to UL, CSA, and European safety standards.

The PPWA150B Series feature active power factor correction and operate from a universal 90-264VAC input. Single output voltages range from 12VDC to 48VDC. Mechanical offerings are a choice of a U-channel or open frame style.

This Series features 3000VAC input-output isolation. Comprehensive protection circuitry, including overvoltage and short circuit protection, is inherent in the design. These highly efficient supplies have an MTBF of >100,000 hours at full load.

Power Partners’ PPWA150B AC/DC power supplies are well suited for wide variety of applications, such as test and measurement, communications, and peripherals.
