Simple Logger II Model L 104 ac current recording device

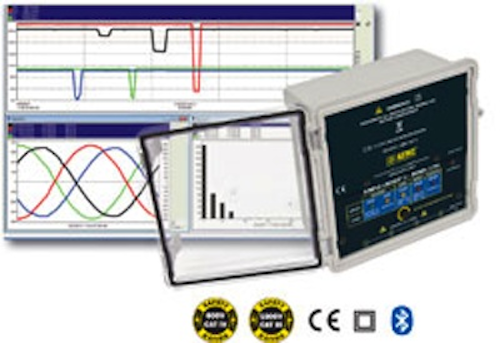

AEMC’s new Simple Logger II, Model L104, is a 4-channel ac current recording device powered by alkaline batteries.

Content Dam Up Online Articles 2012 05 Aemc3

AEMC’s new Simple Logger II, Model L104, is a 4-channel ac current recording device powered by alkaline batteries. The compatible current probes are Models MN93-BK, MN193-BK or SR193-BK (sold separately). Full scale ranges from 5A to 1200A are dependent on probe selection. Harmonic measurements are calculated from 64 samples taken on each ac cycle measured and are available in real-time using the included DataView software.

The Simple Logger II Model L104 stores TRMS measurements at user programmable rates from eight times per second to one per day. TRMS calculations are performed on a single line cycle. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView software.

Bluetooth communication provides for the real-time measurement viewing, configuring the instrument and transfer of data from the instrument's internal memory to the computer for monitoring, storing and/or analysis without the need of connecting a cable.

Features:
• TRMS current recording up to 1200A
• 64 samples per cycle
• Programmable storage rates from 8 per second to 1 every day
• Four user selectable storage modes
• Stores up to 1,000,000 measurements in non-volatile memory
• Up to 180 days or more of operation from standard alkaline batteries dependent on sample rate
• Lightweight, compact, fits anywhere
• Six LED indicators quickly and clearly display logger status
• Includes FREE DataView software for data storage, real-time waveform display, analysis & report generation
• Wireless Bluetooth data communication
• Supported current probes: SR193-BK, MN193-BK or MN93-BK
• Safety Ratings 600V CAT IV; 1000V CAT III

Applications:
• Single/split phase and 3-phase load monitoring
• Neutral and ground current monitoring
• Intermittent problem detection
• Harmonic current monitoring using DataView software
• Machine load monitoring
• Fault current detection
• Load profiling
