UCT-8 Underground Cable Fault Tester is a Lightweight One-piece Tool

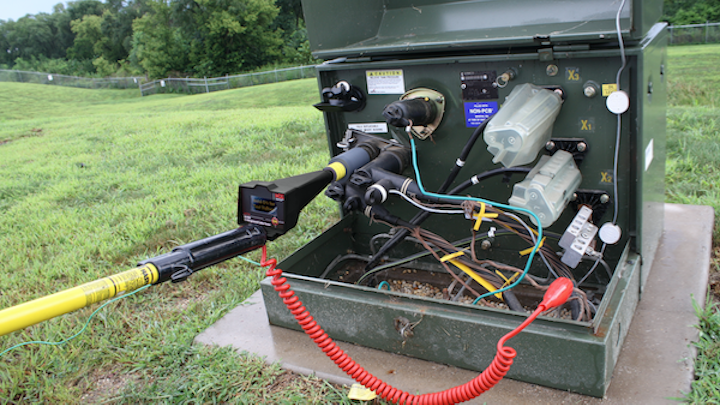

Test equipment: HD Electric Co., a Textron Inc. company, now offers its new Underground Cable Fault Tester, the UCT-8, a lightweight one-piece tool that is used to test underground de-energized primary shielded voltage cables for faults.

Content Dam Up En Articles 2017 06 Uct 8 Underground Cable Fault Tester Is A Lightweight One Piece Tool Leftcolumn Article Thumbnailimage File

Test equipment: HD Electric Co., a Textron Inc. company, now offers its new Underground Cable Fault Tester, the UCT-8, a lightweight one-piece tool that is used to test underground de-energized primary shielded voltage cables for faults.

The most significant advantage is that the tool will digitally analyze the data gathered during a test to declare a cable ‘good’ or ‘bad’ with zero interpretation required on the part of the end-user. To give context, previous generations of this tool required the user to observe an analog needle gauge and form a judgement based on its movements—so a bad cable may show up as a needle ‘jumping around’ during the test, or landing on a value that was slightly higher than expected. The UCT-8 takes the guesswork out of underground cable fault testing.

Test results for underground DC leakage are clearly displayed as an analog bar graph along with an indication of a good or faulted cable. A self-contained 8-kV high voltage source powers the tester using a 9V lithium battery, making the UCT-8 a compact single hotstick operation tool for testing cable. There is also integrated safety circuitry that detects cables that have not been properly de-energized, alerts the user of the problem, and shuts down the test to prevent system damage. An automatic shutoff feature helps the battery last longer.
