Utility equipment: All-Terrain Tree Trimmer

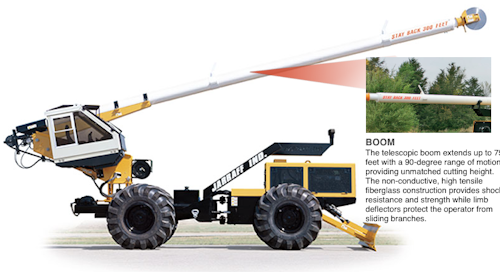

Line maintenance: Jarraff’s All-Terrain Tree Trimmer offers 360-degree rotation, lateral tilt, 75-ft. cutting height.

Jun 27th, 2017
Content Dam Up En Articles 2017 06 Utility Equipment All Terrain Tree Trimmer Leftcolumn Article Thumbnailimage File

Utility equipment: Jarraff’s All-Terrain Tree Trimmer offers 360-degree rotation, lateral tilt, 75-ft. cutting height.

BOOM
The telescopic boom extends up to 75 feet with a 90-degree range of motion, providing unmatched cutting height. The non-conductive, high tensile fiberglass construction provides shock resistance and strength while limb deflectors protect the operator from sliding branches.

SAW BLADE
24-inch blade with carbide tips operates at 3,200 rpm. Two specifically designed blades come with each Jarraff. The Jarraff's saw blade is constructed for raw cutting power.

FAIRLEAD ROLLERS
Large rollers and one or more abrasion-resistent hose coverings help reduce wear and extend hose life.

TURNTABLE
Hydraulically powered turntable provides 360° range of motion and 40° lateral tilt.

WINCH
Convenient 20,000 pound pull winch standard on every model. (Comes with 150', 5/8" cable.)

PUSH BLADE
Hydraulically powered 8 ft. (2.4 m) push blade keeps the Jarraff's path free of obstruction.

HYDRAULICS
Innovative hydraulic system powers boom positioning controls and extension controls continuously.

PORTABILITY
Transporting the Jarraff is simple. Both wheeled and track Jarraffs are easily trailered and transported.

INTERNAL WET-DISC BRAKES
Improved disc brake design increases braking system life span and allows for easy servicing on the 4-wheel drive model.

Unsurpassed Quality and Craftsmanship
Ingenuity, innovation and experience go into every Jarraff All-Terrain Tree Trimmer. From the smallest hydraulic seals to the 75-foot boom, every machine is constructed with unsurpassed quality and craftsmanship. The means you can expect outstanding performance in the field whether its standard tree trimming and cutting or transmission and distribution line clearing.

The telescopic boom extends up to 75 feet with a 90-degree range of motion, providing unmatched cutting height. The non-conductive, high tensile fiberglass construction provides shock resistance and strength while limb deflectors protect the operator from sliding branches.

ENGINE OPTIONS
Deutz Diesel Engine
A fuel-efficient Deutz diesel engine provides 97 horsepower. The four cylinder, turbo diesel engine positioning allows for easy access and service.

Tier III Cummins Engine
The Tier III Cummins liquid cooled, 130 horsepower electronic controlled engine option provides increased horsepower, improving the Jarraff’s grade climbing abilities and current emissions rating.
