Test equipment: Underground Cable Fault Tester

Cable test equipment: HD Electric’s UCT-8 Underground Cable Fault Tester adds new dimension to underground cable fault testing.

Jul 19th, 2017
Content Dam Up En Articles 2017 07 Test Equipment Underground Cable Fault Tester Leftcolumn Article Thumbnailimage File

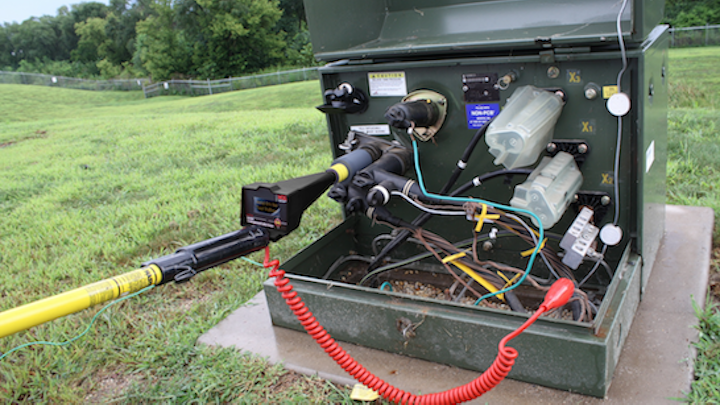

Test products: HD Electric Co., a Textron Inc. company, now offers its new Underground Cable Fault Tester, the UCT-8, a lightweight one-piece tool that is used to test underground de-energized primary shielded voltage cables for faults.

“The most significant advantage is that the tool will digitally analyze the data gathered during a test to declare a cable ‘good’ or ‘bad’ with zero interpretation required on the part of the end-user,” said Eli Johnson, Electrical Engineer at HD Electric Company. “To give this some context, previous generations of this particular tool required the user to observe an analog needle gauge and form a judgement based on its movements,” added Johnson. “So a bad cable may show up as a needle ‘jumping around’ during the test, or landing on a value that was slightly higher than expected. The UCT-8 takes all the guesswork out of underground cable fault testing.”

Test results for underground DC leakage are clearly displayed as an analog bar graph along with an indication of a good or faulted cable. A self-contained 8kV high voltage source powers the tester using a 9V lithium battery, making the UCT-8 a compact single hotstick operation tool for testing cable. There is also an integrated safety circuitry that detects cables which have not been properly de-energized, alerts the user of the problem, and shuts down the test to prevent system damage. An automatic shutoff feature helps the battery to last longer.

About HD Electric Company
For over eighty years, HD Electric Company, a Textron Company, has provided products serving the diverse needs of the electrical power industry and its related industries worldwide. HDE’s continuous improvement and innovation in the areas of controlling, testing, measuring and recording of electric power has resulted in the development of leading edge products designed to help deliver electric power to customers safely and efficiently.

Textron Inc.
Textron Inc. is a multi-industry company that leverages its global network of aircraft, defense, industrial, and finance businesses to provide customers with innovative solutions and services. Textron is known around the world for its powerful brands such as Bell Helicopter, Cessna, Beechcraft, Hawker, Jacobsen, Kautex, Lycoming, E-Z-GO, Greenlee, Bad Boy Off Road, Textron Systems and TRU Simulation + Training.

For more information about HD Electric,Textron, or other products, click here to go to Utility Products’ website. Or visit our Industry News and Equipment Showcase e-newsletters.
