Video surveillance: Double 24-in. rugged bi-fold - MIL-STD 810G - LCD monitors for critical applications

Video monitoring: Chassis Plans announces military grade 2U rackmount bi-fold LCD system. The first side-by-side 24-in. rugged displays offer a multitude of available video input formats in a 2U rackmount package.

Jan 5th, 2018
Content Dam Up En Articles 2018 01 Video Surveillance Double 24 In Rugged Bi Fold Mil Std 810g Lcd Monitors For Critical Applications Leftcolumn Article Thumbnailimage File

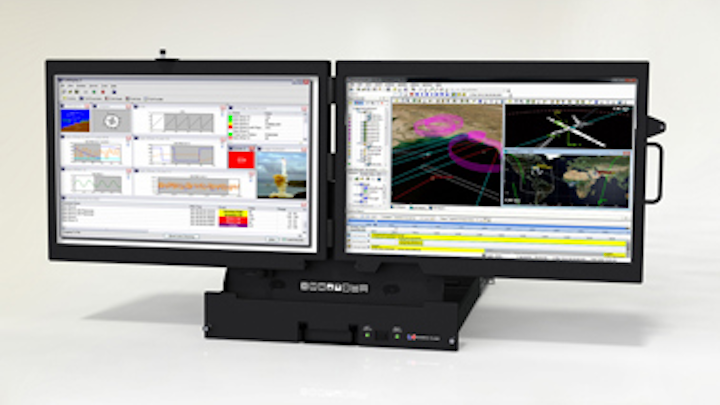

Video surveillance: Chassis Plans’ new BFX displays rugged, military grade, high performance, 2U rackmount LCD panel displays offering two 24-inch TFT LCD displays with per panel resolution of 1920x1200. 1000:1 contrast ratio, and 4ms response time.

The 37-pound BFX1-24 is ideal for deployable transit case integration where both image quality and display toughness are required. Both displays in the BFX are offered with bonded cover glass with anti-reflection and EMI surface treatments for MIL-STD-461G certification. 1The BFX1-241 model is optimized for reliable operation in extreme outdoor and challenging environments and can operate in widely varied temperatures (0°C to 50°C / -25°C to 60°C).

The BFX displays support a wide range of video resolutions – from 640x480 all the way up to 1920x1200; video inputs include VGA, DVI Dual Link, HDMI, DVI-D and NTSC/PAL/SECAM video as well as Composite Video and S-Video.

Other functions and options include up to 10 bit per color, 16.7 million colors, On Screen Display (OSD) menu, Image Scaling: Up scaling to fit input to panel resolution. Image Control features include Auto configuration, Brightness, Contrast, Clock, Phase, Color temperature, Image position, Saturation, Hue, Gamma.

Additional Features: System Information, OSD position, scaling to fill screen and fill to aspect ratio, OSD timeout, factory reset, OSD menu transparency, Horizontal & Vertical image inversion, Picture in Picture, Picture by Picture variable positions. RS-232 or Ethernet command and control.

In addition to its outstanding video performance, the BFX displays include 2 integrated, water resistant speakers. Chassis Plans’ BFX displays can operate on a range of power sources - including universal input 85 to 245 VAC MIL-STD-1275/704 28 VDC, with options for 12VDC and 400Hz AC input as well.

More about Chassis Plans
Chassis Plans is a manufacturer of computers, LCD displays, storage arrays that are designed and assembled in the USA for Military and Industrial applications. Chassis Plans was founded in 1997 and has been at the forefront of Rugged and Custom Computer and LCD technology serving the DoD and Industrial markets.
