Utility supplies: Shielded connectors featured at 2018 InfoComm

Platinum Tools features ezEX-RJ45 shielded connectors at 2018 InfoComm. Connectors feature an integrated Hi-Lo stagger load bar and allow “big” conductors to pass through the front end of the connector.

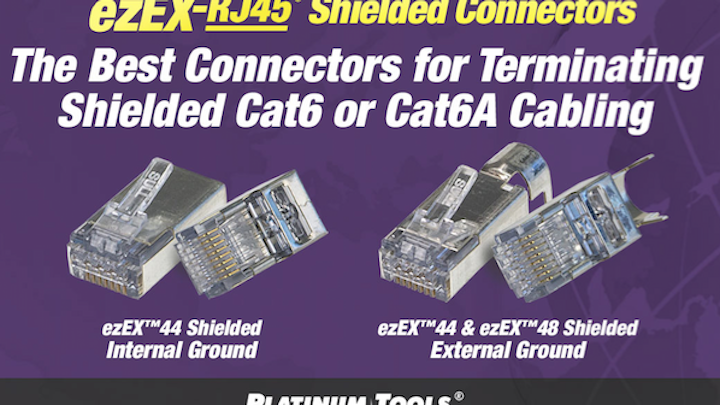

Content Dam Up En Articles 2018 05 Utility Supplies Shielded Connectors Featured At 2018 Infocomm Leftcolumn Article Thumbnailimage File

Utility supplies: Platinum Tools®, a provider of solutions for the preparation, installation, hand termination and testing of wire and cable, will feature the recently launched ezEX-RJ45® shielded connectors during InfoComm 2018, held from June 6-8 at the Las Vegas Convention Center, booth C3445. The new connectors are now shipping.

“Our new shielded ezEX-RJ45® connectors are designed for larger cables and conductors,” explained Lee Sachs, Platinum Tools, Inc. president and general manager. “They feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector, making it easy to verify the wiring sequence before terminating. These connectors are typically used with either CAT6 CAT6A and are terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).”

Additional features and specifications include:

ezEX™44 Shielded CAT6 Connector, Internal Ground
• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design, no bars or liners
• Shielded 5e/6/6A compliant
• Insulation Diameter (Conductor) - Size range: 0.039in. – 0.044in. (1.0 –1.12mm)
• Max Outer Diameter: 0.2805in. (7.1mm)
• Solid or Stranded 24-22 AWG
• TAA, TIA, RoHS, UL & FCC compliant
• Made in the USA

ezEX™44 Shielded, External Ground, CAT6 Connector
• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design, no bars or liners
• Shielded 5e/6/6A compliant
• Insulation Diameter (Conductor) - Size range: 0.039in. – 0.044in. (1.0 –1.12mm)
• Max Outer Diameter: 0.305in. (7.75mm)
• Solid or Stranded 24-22 AWG
• TAA, TIA, RoHS, UL & FCC compliant
• Made in the USA

ezEX™48 Shielded, External Ground, CAT6A Connector
• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design, no bars or liners
• Shielded 6/6A compliant
• Insulation Diameter (Conductor) - Size range: 0.043in. – 0.048in. (1.09 –1.22mm)
• Max Outer Diameter: 0.305in. (7.75mm)
• Solid or Stranded 23-22 AWG
• TAA, TIA, RoHS, UL & FCC compliant
• ezEX™44 - ezEX-RJ45® CAT6 Connector
• Made in the USA

About Platinum Tools
Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop the absolute best possible solutions for the preparation, installation, and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely, and high-quality manner.

All of our products must absolutely satisfy three critical benchmark criteria…utility of function; quality of function; and economic value. Our people are our company. They, too, must be focused on and work to satisfy three critical benchmark criteria…customer satisfaction; product knowledge and expertise; and willingness to learn and adapt.
