Overhead & Underground

Reliaguard2a

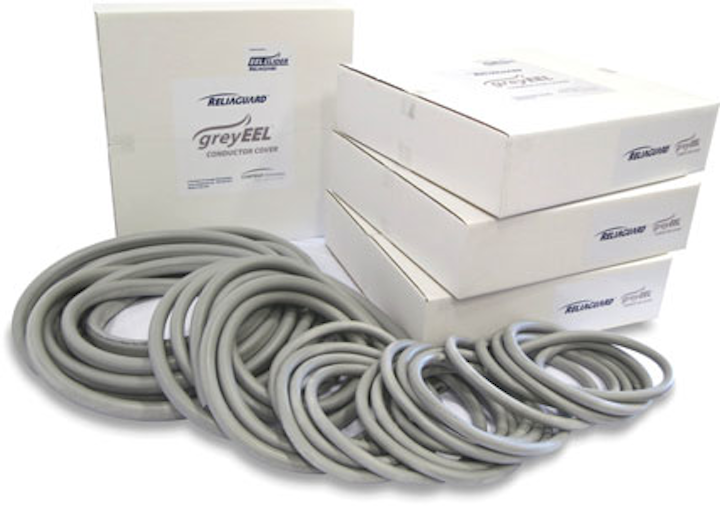

GreyEEL Conductor Cover Provides Exceptional Coverage - Orders Ship With the EEL Slider Application Tool

Utility safety: Protecting conductors is an essential component when applying effective cover-up to prevent animal and bird caused outages. Reliaguard’s GreyEEL Conductor Cover helps prevent contacts by eliminating gaps in coverage. The product’s improved protection is achieved with a significantly overlapped seam design and material memory technology that supports exceptional closure performance.

Reliaguard2a

Reliaguard has developed the new EEL Slider tool to apply GreyEEL. The EEL Slider is a dielectric tool designed for use with the rubber glove work method or for de-energized installation. The difficulty of applying conductor cover by hand is eliminated with the EEL Slider. Ergonomically designed and easy to use, the EEL Slider optimizes safety, dexterity and the speed of applying GreyEEL. The EEL Slider is patent pending.

Reliaguard2b

Reliaguard Inc., a subsidiary of Cantega Technologies Inc.

Regulator Cover Protects Distribution Voltage Regulators

Reliaguard Inc., manufacturer of products to improve powerline protection to prevent animal and bird caused outages, has released a new Reliaguard Voltage Regulator Cover as part of the Reliaguard product line to complement the GreyEEL Conductor Cover and The EEL Slider.

Both three-phase and single-phase regulators have reduced clearances because of their characteristic design and how they are commonly configured. These nominal clearances create a high risk for bird and animal contact. The high cost of replacing a regulator is another reason why it is crucial to protect such an important system asset.

Reliaguard1

Reliaguard Regulator Covers offer complete coverage of energized components including Series Arresters and Brackets, Bushing Terminals and Wire Connectors.

Complete coverage of energized components ensures system asset protection from bird or animal contact.

  • Reliaguard Regulator Covers have an overlapping design to ensure there are no gaps in coverage. These covers are designed for 50 AMP to 400 AMP Cooper regulators.
  • Reliaguard covers offer better retention onto bushings because of their design. Reliaguard’s two-part Regulator Covers provide comprehensive coverage of the regulator while leaving the insulated area of the arrester exposed for visual verification of the arrester’s integrity.
  • Reliaguard Regulator Covers can accommodate a wide range of bushings and conductor diameters.

Reliaguard Inc., a subsidiary of Cantega Technologies Inc.

Lightning Arrester Cover Product for the Powerline is Non-flammable

Safety products: Cover-up that is usually included with new arresters often doesn’t provide enough coverage to fully protect the wire connection. In addition, it doesn’t take the stripped conductor (often poly covered) into account to make the connection protected on top of the arrester. According to ArresterWorks (Wildlife Protective Devices for Arresters by Jonathan Woodworth), lightning arrester protection should consider that the higher the voltage, the further the coverage needs to extend.

Reliaguard3

With current surges being diverted through arresters, it is critically important that the arresters and associated cover-up are non-flammable. Reliaguard Lightning Arrester Covers ensure better coverage, are more securely retained in place, are non-flammable and can accommodate a wide range of conductor diameters.

Reliaguard is a subsidiary of Cantega Technologies Inc., dedicated to the design of commodity animal and bird guards for the powerline. Reliaguard also manufactures conductor cover to be used in conjunction with its animal guards. Manufactured in California, Reliaguard parts are produced on a volume basis using injection mold and thermoform manufacturing processes and priced affordably for large volume purchases.

Reliaguard Inc., a subsidiary of Cantega Technologies Inc.

Fused Disconnect Switch Cover Protection From Animal Contact on Powerlines

Safety equipment: Fused disconnects or cut-out switches are often configured in close proximity to each other and may result in phase-to-phase or phase-to-ground animal contacts. These switches are a common piece of equipment where outages occur. When utilities are making selections for mitigation covers, switches should be a priority.

Reliaguard4

Designed to ensure a better fit, Reliaguard Switch Covers are available for SNC, Chance and Cooper Switches. Covers for additional equipment types required for volume orders will be designed by Reliaguard as requested by customers. Reliaguard Switch Covers are designed to ensure superior retention so they are not dislodged by weather, vibration or animals.

Reliaguard is a subsidiary of Cantega Technologies Inc., dedicated to the design of commodity animal and bird guards for the powerline. Reliaguard also manufactures conductor cover to be used in conjunction with its animal guards. Manufactured in California, Reliaguard parts are produced on a volume basis using injection mold and thermoform manufacturing processes and priced affordably for large volume purchases.

Reliaguard Inc., a subsidiary of Cantega Technologies Inc.

ARS607 Hydraulic Puller for Underground Pulling Applications

The ARS607 hydraulic puller from Condux Tesmec is for a wide range of underground pulling applications including power transmission and distribution cable installation, telecom and fiber. With more than 10 tons of pulling force, the ARS607 offers features such as a negative self-acting hydraulic brake, an integrated hydraulic dynamometer, a hydraulic cooling system, advanced user controls and more.

Condux Tesmec1

A standard electronic pull and speed monitor and recorder kit is integrated into the control panel, providing users real time data on pulling operations. Bull-wheel grooves on the ARS607 are made from heat-treated steel.

The Condux Tesmec line of hydraulic pullers, tensioners, puller-tensioners and stringing blocks represents the safest and most reliable equipment in the power transmission and distribution industry.

Condux Tesmec

ARS711 Hydraulic Puller Features Dual Pulling Modes, Tier 4 Final Engine

Condux Tesmec’s ARS711 hydraulic puller is for a wide range of pulling applications including power transmission and distribution cable installation. The ARS711 features a 286 hp, Volvo Penta Tier 4 Diesel Engine, compliant with US EPA Tier 4 Final emissions legislation.

The unit also offers a hydraulic motor with dual displacement positions for two pull settings: high pull mode and high speed mode. In high pull mode, the unit offers a maximum pulling force of 40,000 lbs. at a pulling speed of 1.5 mph, and 20,000 lbs. of pull force at a maximum speed of 2.9 mph. In high speed mode, the ARS711 offers a maximum pulling force of 27,000 lbs. at a pulling speed of 2.0 mph, and 13,500 lbs. of pull force at a maximum speed of 4.0 mph.

Condux Tesmec2

The ARS711 is available as a modular unit, allowing greater flexibility for job site transport and set up, while providing the ability for end-user mounting on an existing chassis.

A newly updated HMI control provides access to features such as a negative self-acting hydraulic brake, an integrated hydraulic dynamometer, a hydraulic cooling system and more. A standard electronic pull and speed monitor and recorder kit is integrated into the control panel, providing users real time data on pulling operations.

Condux Tesmec

‘No Bolts’ Cleat Is Launched

Utility supplies: ETS Cable Components is part of the development and subsequent launch of a new cleat that requires no traditional fixings to be secured in place. The design also allows for additional cleats to be stacked on top of one another with nothing more than a small turn of a fixing lock.

Ets Cable Components

The concept was driven by an initial discussion with Network Rail who contacted ETS to enlist our help in finding a cable fixing cleat solution to alleviate a critical health and safety issue. Following subsequent design meetings and the continual evolution of the design concept over the last year, the finished product is now ready.

Some key features include:

  • No bolts-allowing for rapid installation through a simple ‘turn and lock’ mechanism onto containment
  • Easily stackable-additional cables can be added without disturbing existing installations
  • Manufactured from London Underground 1-085 approved material
  • Suitable for fixing cables ranging from 18-55mm in diameter

ETS Cable Components
