Line maintenance: Four-wheel tree trimmer

Vegetation management: Jarraff’s 4-wheel tree trimmer comes with several different tire options for a wide variety of transmission and distribution line right of way maintenance applications.

Content Dam Up En Articles 2015 08 Line Maintenance Four Wheel Tree Trimmer Leftcolumn Article Thumbnailimage File

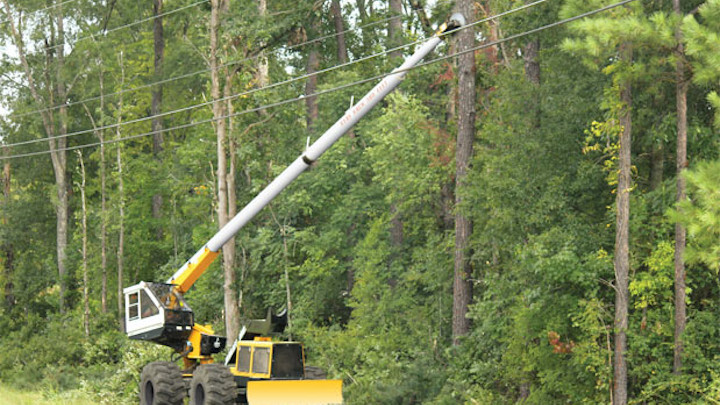

Line maintenance: Jarraff’s 4-wheel tree trimmer comes with several different tire options for a wide variety of transmission and distribution line right of way maintenance applications. These options range from small all-terrain tires to large, heavy-duty log-skidder style tires. The 4-wheel drive Jarraff offers minimal maintenance and a low ground pressure. Travel time is significantly reduced with this model.

Imperial Technical Specifications
• Maximum cutting height: 75 ft.
• Rotation: 360 degrees on turntable
• Upper controls: 2 four-way joysticks
• Traveling length: 41 ft. 6 in.
• Boom: Non-conductive telescoping fiberglass
• Saw: Specifically designed, 24-in. diameter, 3200 rpm
• Engines: Deutz 97 hp, four cylinder, air-cooled, turbo diesel; Tier III Cummins liquid cooled, 130 hp, electronic controlled
• Fuel capacity: 45 gallons, approx 2 gallons per hour
• Coloring options: Custom color coating
• Winch: 20,000 lb winch, 150 ft. of 5/8-in. cable included
• Push blade: 8 feet, hydraulically controlled
• Hydrostatically Driven
• Operates off all quadrants without outriggers
