Construction equipment: Hydraulic puller-tensioner

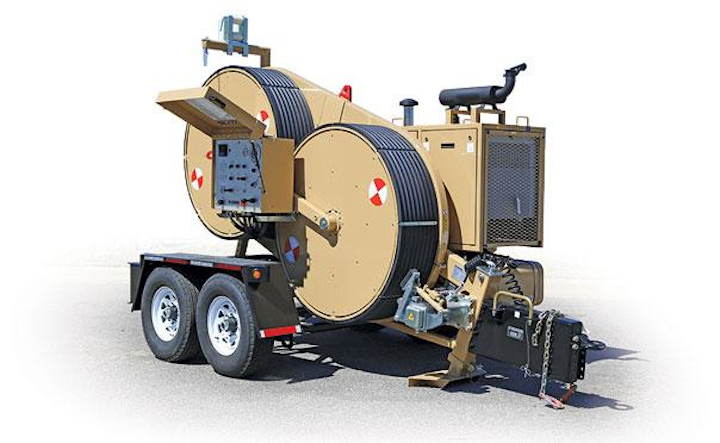

Line construction: Condux Tesmec’s AFS404 hydraulic puller-tensioner is designed for stringing one rope or one conductor.

Aug 21st, 2015
Content Dam Up En Articles 2015 08 Construction Equipment Hydraulic Puller Tensioner Leftcolumn Article Thumbnailimage File

Transmission line construction: Condux Tesmec’s AFS404 hydraulic puller-tensioner is designed for stringing one rope or one conductor. The bull-wheel grooves on the AFS404 are from of high resistance interchangeable nylon sectors. Wear-proof thermally and chemically treated steel bull-wheel grooves are also available on the AFS404.

STANDARD EQUIPMENT
• Negative self-acting hydraulic brake
• Hydraulic dynamometer with set-point and automatic control of maximum pull
• Hydraulic oil cooling system
• Digital meter counter
• Control instruments for hydraulic system and Diesel engine
• Rigid axle for towing at max speed of 19 mph (30 km/h) with mechanical parking brake (non DOT model)
• Hydraulic rope/conductor clamps for reel change operation
• Hydraulic quick connectors to control a separate reel stand/winder
• Electronic adapter for connection of multiple machines and for stringing synchronization
• Gearbox with 3 operating positions:
• neutral position (with free bull-wheels for conductor loading and unloading)
• low tension position 350-1,800 lbf (1.5-8 kN)
• nominal tension position 1,350-10,100 lbf (6-45 kN)
• Mechanical front stabilizer
• Grounding connection point
