Construction equipment: Hydraulic puller for wide range of pulling applications
Utility line construction: Condux Tesmec ARS711 hydraulic puller features dual pulling modes and Tier 4 Final engine.

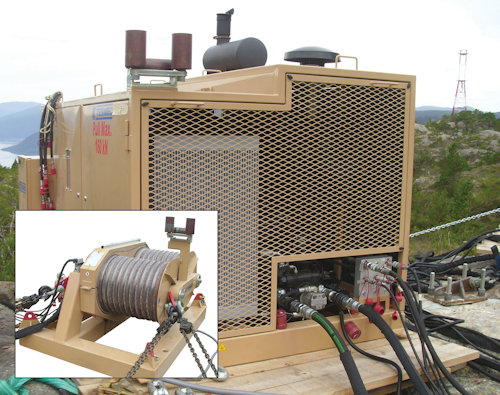

Utility equipment: The ARS711 hydraulic puller from Condux Tesmec is ideal for a wide range of pulling applications including power transmission and distribution cable installation. The ARS711 features a 286 hp, Volvo Penta Tier 4 Diesel Engine, compliant with US EPA Tier 4 Final emissions legislation.
The unit also offers a hydraulic motor with dual displacement positions for two pull settings: high pull mode and high speed mode. In high pull mode, the unit offers a maximum pulling force of 40,000 lbs. at a pulling speed of 1.5 mph, and 20,000 lbs. of pull force at a maximum speed of 2.9 mph. In high speed mode, the ARS711 offers a maximum pulling force of 27,000 lbs. at a pulling speed of 2.0 mph, and 13,500 lbs. of pull force at a maximum speed of 4.0 mph.
The ARS711 is available as a modular unit, allowing greater flexibility for job site transport and set up, while providing the ability for end-user mounting on an existing chassis.
A newly updated HMI control provides access to industry-leading features like a negative self-acting hydraulic brake, an integrated hydraulic dynamometer, a hydraulic cooling system and more. A standard electronic pull and speed monitor and recorder kit is integrated into the control panel, providing users real time data on pulling operations. Bull-wheel grooves on the ARS711 are made from heat-treated steel.
The Condux Tesmec line of hydraulic pullers, tensioners, puller-tensioners and stringing blocks represents the safest and most reliable equipment in the power transmission and distribution industry.
