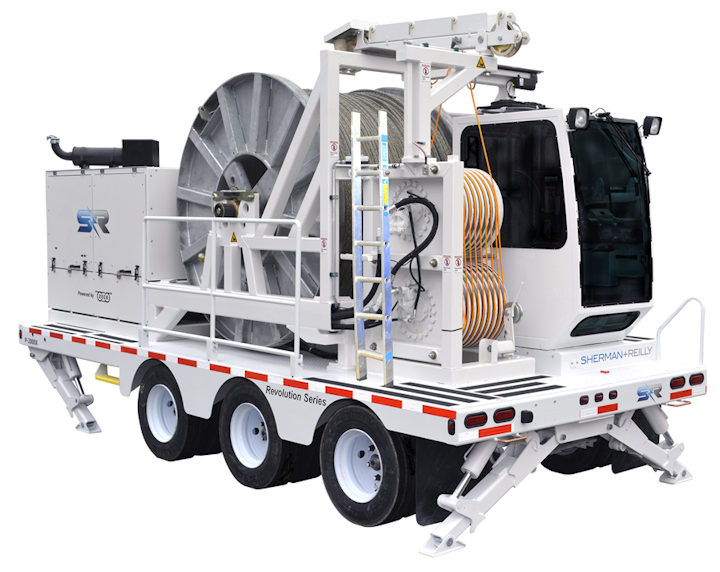

Line construction: Sherman + Reilly adds P-2000X Single Reel Bullwheel puller to its Revolution Series of pullers.

Apr 9th, 2015
Content Dam Up En Articles 2015 04 Construction Equipment Power Line Stringing And Installation Equipment Leftcolumn Article Thumbnailimage File

Utility equipment: Sherman + Reilly, a Textron Inc. company, and a manufacturer of power line stringing and installation equipment, continues to drive innovation with the release of a new puller to its Revolution Series, the P-2000X Single Reel Bullwheel puller.

This new transmission class puller is equipped with a 175 HP industrial diesel engine capable of delivering an even 20,000 lbs. of pulling power from the start of the pull to the end and also comes with a fully hydraulic direct drive system.

The P-2000X utilizes an automatic horizontal levelwind that permits overhead rope retrieval with precision control. The puller is equipped with an ACG (advanced control group), that allows for a single operator at a protected central console to control payout speed, pulling speed, levelwind controls, and jack position. The operator controls utilize electronic (CAN-bus)- controller area network communication bus technology, providing for accurate to-the-second display readouts of the machine system status.

The fully hydraulic direct drive system provides the operator with precise and intuitive automatic drive/drum braking. The P-2000X¹s tandem electric brake axle trailer is equipped with four hydraulic jacks, an adjustable pintle eye, safety chains/hooks, emergency brake away switch, and U.S. DOT-approved LED lighting.

The P-2000X features a Safe-Zone Cab providing ultimate safety and comfort for the operator. The Safe- Zone Cab employs a floor to ceiling polycarbonate front window for maximum visibility while providing superior protection against impact. The cab includes climate control, a fully adjustable ergonomic seat, and all required electronic controls and gauges. The Safe-Zone Cab is designed to reduce operator fatigue, reduce distractions to improve operator communication, and to provide an “off-ground” envelope for greatly reducing the risk of “touch potential” in energized environments.

Sherman+Reilly, Inc.
Since 1927, Chattanooga-based Sherman + Reilly, a Textron company, has been a leading manufacturer of tools and equipment for underground and aerial transmission, and distribution of electrical power and communications systems, including a complete line of bundle blocks, pullers, tensioners and reel trailers.
