Construction equipment: Folding guard arm is a versatile attachment
Boom trucks: LineWise’s Folding Guard Arm is a versatile attachment for boom trucks, digger derricks and various cranes. It simplifies conductor repairs and maintenance, jobs previously held by cumbersome wooden guard structures, homemade guard arms and bucket or boom trucks fitted with 4x4s.

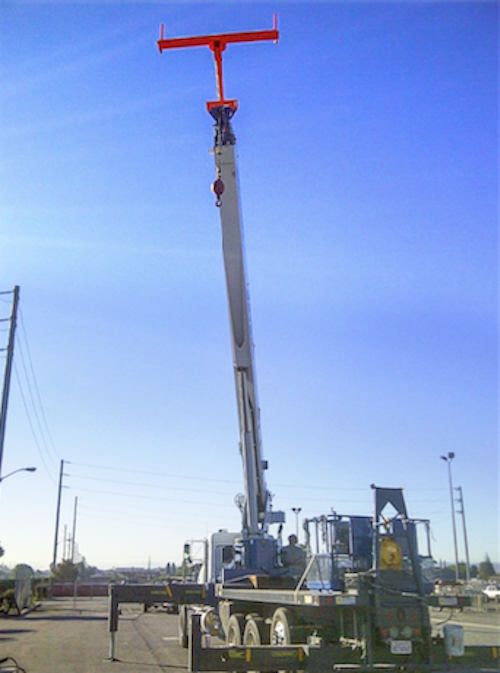

Construction equipment: The new Folding Guard Arm from LineWise is a versatile attachment for boom trucks, digger derricks and various cranes. It simplifies conductor repairs and maintenance, jobs previously held by cumbersome wooden guard structures, homemade guard arms and bucket or boom trucks fitted with 4x4s. The Folding Guard Arm has a stamped serial number plate fixed to the assembly to inform users of the rated load.
The Folding Guard Arm is useful for providing extra protection around highways and railroads where power lines cross. When either removing or installing a conductor, it keeps the travel route clear if a conductor or pulling rope were to droop too low. Through careful planning, the Folding Guard Arm will never touch the pulling rope or conductor.
Weighing 370 pounds, the Folding Guard Arm has a capacity of 1,000 pounds when attached to equipment with a load capacity of at least 1,370 pounds. It comes equipped with three lifting rings to assist in mounting, and folds easily for transportation or storage. Overall dimensions are 96-inches by 36.5-inches by 54-inches when in use, and a compact 80.25-inches by 17-inches by 30.25-inches when folded. With vertical and horizontal rollers, the conductor will not be scarred should it come into contact with the rollers. The Folding Guard Arm can be manually adjusted radially at ground level to allow the crane to set at different positions. Rotary adjustments and boom angle adjustments make precision applications possible from almost any approach.
LineWise is a division of Diversified Products. The company designs, engineers and manufactures a full line of utility products, including line lifters, insulated work platforms, phase lifters and transmission temporary conductor supports.
