Skid steer loader offers heavy-lifting, high-production capacity

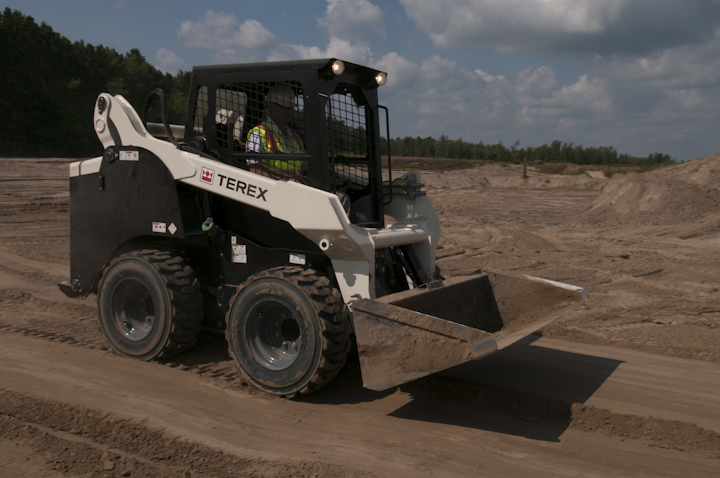

Construction equipment: New vertical-lift path Terex TSV-90 skid steer loader offers operators an 85-hp Tier 4-interim compliant Cummins turbocharged engine, 3,375 lb. of rated operating capacity and 131 in. of lift height to easily complete heavy pick-and-carry and large production-loading applications.

Content Dam Up En Articles 2013 11 Skid Steer Loader Offers Heavy Lifting High Production Capacity Leftcolumn Article Thumbnailimage File

Southaven, MI – Utility vehicles: The new vertical-lift path Terex® TSV-90 skid steer loader offers operators an 85-hp Tier 4-interim compliant Cummins turbocharged engine, 3,375 lb of rated operating capacity and 131 in of lift height to easily complete heavy pick-and-carry and large production-loading applications. Built on a robust chassis that boasts 10.5 in of ground clearance and a 25.5-degree angle of departure, the TSV-90 loader is easily able to work on soft, uneven terrain and slopes where other skid steers can’t.

The Terex TSV-90 skid steer loader is designed for productivity. Enabling it to move more material per load, per day than competitive machines, the TSV-90 loader boasts an operating weight of 9,430 lb, a tipping load capacity of 6,750 lb and a bucket breakout force of 5,820 lb. This powerful skid steer loader also has 8,700 lb of tractive effort and a 23-gal fuel tank capacity to meet tough jobsite demands. The TSV-90 loader also comes standard with mechanical-faced axle seals to protect bearings during operation and reduce maintenance and downtime. It is available with an optional two-speed hydrostatic drive system that allows operators to select low for maximum torque or high for faster travel speeds up to 12 mph.

“With the introduction of the TSV-90, Terex now has a heavy-lifting, high-production skid steer loader for the ‘muscle machine’ market, which is generally considered to be any skid steer loader with more than 3,100 lb of rated operating capacity,” said Jamie Wright, product manager, Terex Construction Americas. “Even with its powerful performance capabilities, the TSV-90 skid steer loader is compact enough to easily maneuver in and around confined or congested work sites. These features combined allow Terex to reach more customers, including large construction and heavy highway contractors, with a machine that is specifically designed to meet, and even exceed, their skid steer loader needs.”

The Terex TSV-90 skid steer loader is also designed with load-sensing hydraulics to help ensure that fuel and energy are not wasted on surplus hydraulic power, so operators can push material, dig, grade and drive-through the toughest jobsite conditions, yet conserve power when requirements are less demanding. Equipped with a hydraulic fan cooling system that needs less engine horsepower to run than mechanical systems, the TSV-90 loader offers clean, efficient cooling and increased production. Its open design, with tilt-up ROPS and tilt-out coolers, enables operators and service technicians to easily access to all critical components, making daily maintenance checks quick and simple.

To get more done on every jobsite, Terex offers performance-matched attachments for its TSV-90 skid steer loader, including auger, backhoe, rotary broom, general purpose bucket, light-material bucket, multi-purpose bucket, dozer blade, pallet forks, power box rake, snow blade, snow blower, stump grinder, trencher, vibratory roller and the Loegering® Eliminator® rake. Each attachment comes standard with the necessary hydraulic lines and connectors or electric connections for a quick, easy fit. To increase operator comfort and ease of operation, the TSV-90 is engineered with standard pilot-operated joystick controls and an ergonomic operator’s station.

About Terex
Terex Corporation is a diversified global manufacturer of a broad range of equipment that is focused on delivering reliable, customer-driven solutions for many applications, including the construction, infrastructure, quarrying, mining, shipping, transportation, refining, energy, utility and manufacturing industries. Terex reports in five business segments: Aerial Work Platforms; Construction; Cranes; Material Handling & Port Solutions; and Materials Processing. Terex offers financial products and services to assist in the acquisition of equipment through Terex Financial Services.
