Fleet maintenance: Vehicle power distribution modules

Utility vehicles: Peerless Electronics now stocking three new Cole Hersee-Littelfuse vehicle power distribution modules.

Content Dam Up En Articles Temp 01 Fleet Maintenance Vehicle Power Distribution Modules Leftcolumn Article Thumbnailimage File

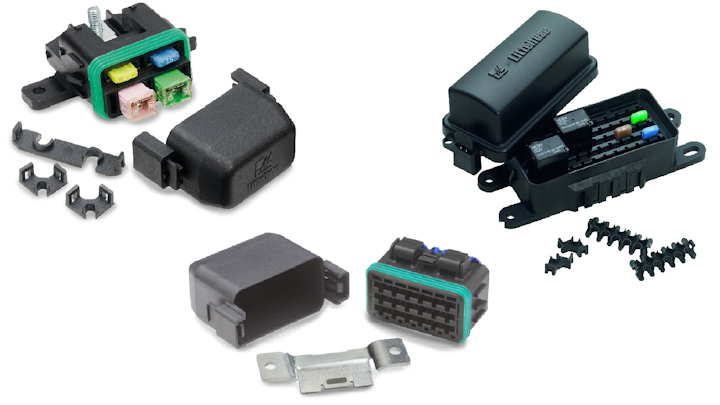

Utility fleets: The HWB Series - PDM31001ZXM and PDM21001LXM - are hard-wired modules designed to be used with 280 style components (mini-fuses, relays, diodes, resistors, etc.) They feature 18 or 60 cavities, creating a high-density fuse module with a compact footprint. These units allow you to completely customize the circuitry and the wires -- simply plug into the back of the module using sealed Delphi Metri-Pack Series 280 tanged terminals. The units are IP67 sealed, making them more reliable in extreme environments so they can to be installed virtually anywhere on the vehicle.

The BPDMA104HXF1 is a 2+2 MINI Fuse and JCASE Holder accommodates two MINI fuses and two JCASE fuses. The use of these fuse types provides an amperage range of 2-60A in a compact package. The four fuses are bussed internally to the main input power stud, which allows you to reduce wiring by making one input connection to power the four fuse circuits. The 2+2 holder is a sealed module, making it ideal harsh environments.

For more information about Peerless Electronics or other products, click here to go to Utility Products’ Buyers Guide.
