SureStart Low Voltage Disconnect Switch

The Cole Hersee SureStart Low Voltage Disconnect (LVD) Switch electronically senses battery voltage and conserves starting power.

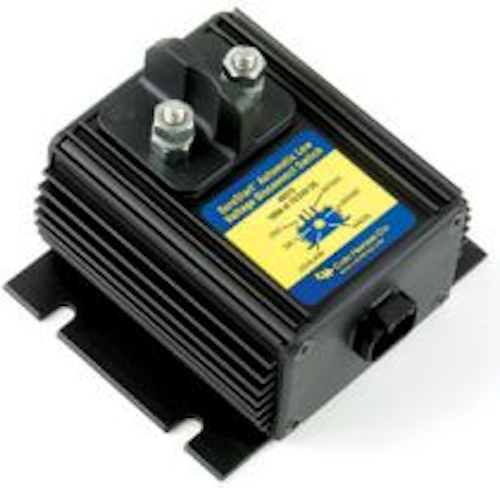

Content Dam Etc Medialib Platform 7 Electric Light And Articles On Line Exclusive 2010 Images 33476

The Cole Hersee SureStart Low Voltage Disconnect (LVD) Switch electronically senses battery voltage and conserves starting power by disconnecting non-critical loads and by prolonging battery life by preventing battery damage due to excessive discharge. This switch is very useful for heavy-duty vehicles, as well as vehicles with ancillary on-board equipment–such as snowplows, hoists, pumps, floodlights, etc., as well as in-cab amenities such as A/C.

The SureStart LVD switch has a rating of 100A at 12V or 24 Vdc. Its service life exceeds 1,000,000 on/off cycles, and it also features a manual override function that allows users to connect or disconnect the switch when needed, regardless of voltage. The switch features a compact size (4.5 inch x 4 inch x 4.27 inch) that makes it easy to install into a new or old vehicle. Unlike many voltage monitoring devices, the SureStart LVD switch does not require a separate solenoid to control high current–making it reliable and simple to install.

Cole Hersee's LVD Switch eliminates dead batteries by automatically disconnecting non-critical loads from a battery when the battery falls below a predefined threshold.
