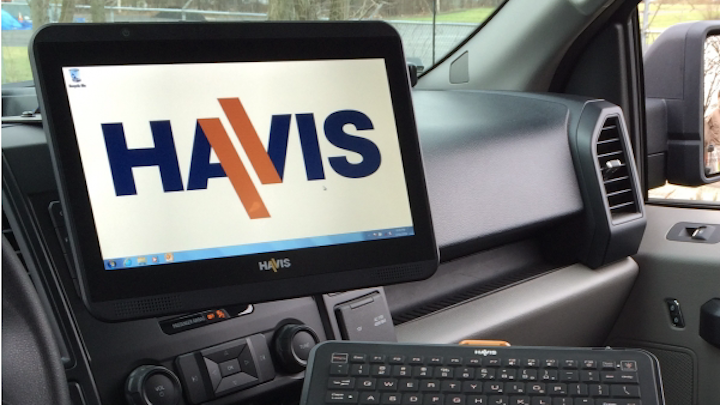

Truck accessory: Havis Touch Screen Display

Mobile computer: Havis’ light weight external monitor designed to extend user’s computing device.

Jun 23rd, 2017
Content Dam Up En Articles 2017 06 Truck Accessory Havis Touch Screen Display Leftcolumn Article Thumbnailimage File

Truck accessory: Havis’ light weight external monitor designed to extend user’s computing device.

Product Details:
• Havis touch screen display (11.6" screen) / high resolution 1366 x768
• Light weight external monitor designed to extend user’s computing device
• Capacitive technology allows multi-touch 2 finger for pinch, zoom, activate.
• Night mode of red monochrome for reduced eye strain, easy toggle back and forth
• Optimized audio experience with two 2.0W integrated stereo speakers allowing for sound directly from computing device.
• HDMI and USB to interface with user's computer device (cables included)
• USB at bottom allows for easy accessibility of input
• Embedded mounting hardware built into chassis, allows for landscape or portrait mode
• Maximizes in-vehicle cabin area for occupants, as Havis touch screen display is mounted to dash and computing device docking station can be mounted in trunk, when C-DMM-2000 Series is purchased.
• Innovative and versatile functionality built into the design such as an integrated USB port allowing easy access for software updates to main device.
• Volume & brightness can be adjusted on the actual display.
• Power button allows screen to be blacked out for privacy without having to do a reboot process, and minimizes driver distraction.
• TSD-101 can attach to optional C-DMM-2000 Series dash monitor mounts
• TSD-101 can also be attached to any mount with VESA 75 hole pattern

Specifications:
• Screen size: 11.6" diagonal (16:9)
• Screen resolution: 1366 x 768
• Product size: 11.6" x 8.5" x 1.4"
• Brightness: 800 nits, 20 levels of adjustment
• Operating temperature: -21°C to 60°C (-6°F to 140°F)
• Quick keys: power button, volume +/-, brightness +/-
• Power supply: 11 to 16VDC input, 12 VDC output
• Audio: two 2.0W stereo speakers
• Mounting: VESA 75
• Os language: windows Win7 & Win8 (tested)
• Green product: RoHS 2.0
• Port replication: USB 3.0 (x3), HDMI 1.3 (x1), power input (12VDC)
• Vibration Testing: MIL-STD 810G 514.5
• Crash test: SAE J1455 30mph Crash Testing
• Environmental testing: hot/cold operational & storage
• Ce, fcc, RoHS
• Gross Weight: 3.75 lbs
