Stored energy: ESG batteries for challenging loads and service conditions of utility applications

Energy management: EnerSys introduces PowerSafe ESG battery, designed to provide 185 to 960 amp-hours (Ah) of capacity range to handle the challenging load profiles and service conditions of utility applications.

Content Dam Up En Articles 2018 02 Stored Energy Esg Batteries For Challenging Loads And Service Conditions Of Utility Applications Leftcolumn Article Thumbnailimage File

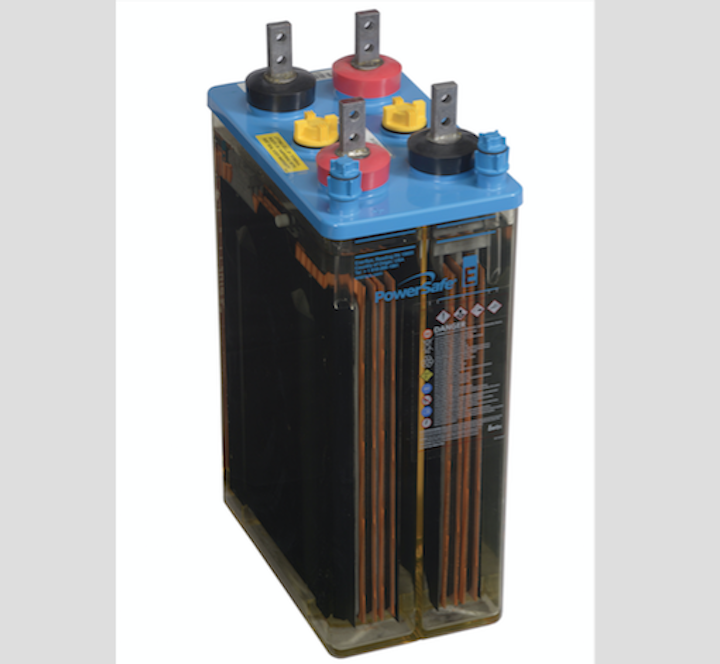

Power management: EnerSys®, a provider of stored energy solutions for industrial applications, has introduced the PowerSafe® ESG battery, designed to provide 185 to 960 amp-hours (Ah) of capacity range to handle the challenging load profiles and service conditions of utility applications.

The configuration of five multi-cell 4-volt units (185, 234, 281, 354 and 418Ah) reduces the footprint of the PowerSafe® ESG battery to enable minimal occupation of floor space. Individual terminal posts on each cell facilitate integration of battery monitoring and test equipment used in routine maintenance and inspection. The Slide-Lock™ post seal accommodates natural plate growth over time for maximum reliability and reduced maintenance. Additionally, the tongue-and-groove jar-to-cover seal provides a robust airtight seal.

“PowerSafe® ESG batteries are engineered with proprietary materials and design features to deliver the performance and service life utility applications require,” said George Brendahl, utilities product manager, EnerSys. “Their thick grids ensure long-duration discharge performance and extended life.”

The capacity range of 185 to 960 Ah is rated at eight hours to 1.75 volts per cell (Vpc) at 77°F (25°C). Initial capacity is rated at 100 percent. Other features of the PowerSafe® ESG battery include cast lead posts with copper inserts and a dual-hole design that can handle the most demanding one-minute rates, which are characteristic of utility load profiles. The ESG line offers a 20-year life expectancy in float service at 77°F (25°C) ambient temperature.

ABOUT ENERSYS®
EnerSys, the global leader in stored energy solutions for industrial applications, manufactures and distributes reserve power and motive power batteries, battery chargers, power equipment, battery accessories and outdoor equipment enclosure solutions to customers worldwide. Motive power batteries and chargers are utilized in electric forklift trucks and other commercial electric powered vehicles. Reserve power batteries are used in the telecommunication and utility industries, uninterruptible power supplies, and numerous applications requiring stored energy solutions including medical, aerospace and defense systems. Outdoor equipment enclosure products are utilized in the telecommunication, cable, utility and transportation industries, and by government and defense customers. The company also provides aftermarket and customer support services to its customers from over 100 countries through its sales and manufacturing locations around the world.

For more information about EnerSys or other products, click here to go to Utility Products’ website.
